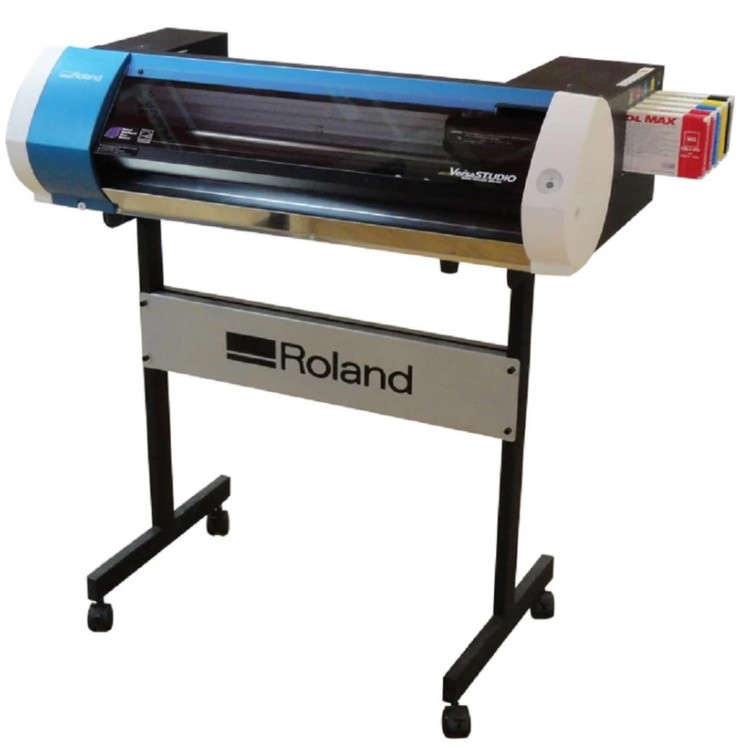

Name: Roland VersaStudio BN-20 Printer / Cutter - cmykgate
Price: 10000 USD
Availability: InStock

Description

Specifications

Model		VersaStudio BN-20
Printing method / Cutting method		Piezoelectric inkjet / Grit roller feed
Acceptable media	Width	5.9 to 20.3 in. (150 to 515 mm)
	Thickness	Printing: Maximum 39 mil (1.0 mm) with liner
	Thickness	Cutting: Maximum 16 mil (.4 mm) with liner
	Roll Weight	Maximum 13.2 lbs (6 kg)
	Roll Outer Diamater	Maximum 5.9 in (150 mm)
	Core Diamater	2 in (50.8 mm)or 3 in (76.2 mm) cores
Printing/cutting width1		Maximum 18.9 in (480 mm)
Ink cartridges		Type
Ink Cartridges	Type & Capacity	Roland ECO-SOL MAX or FPG Aqueous, 220 ml only
	Colors	5 Color – CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White)
	Colors	4 Color – CMMYK (Cyan, Magenta, Yellow, Black)
Printing resolution		Max 1440 dpi
Cutting Blade	Type	Roland CAMM-1 series cutter blade
Cutting Blade	Blade Offset	Fixed at 0.250 mm
Cutting speed		0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
Blade force		30 to 300gf
Software resolution (when cutting)		0.000984 in/step (0.025 mm/step)
Distance accuracy (when printing)2,3		Error of less than ± 0.3 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Distance accuracy (when cutting)2,4		Error of less than ± 0.4 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Repetition accuracy (When cutting)2,5		±0.004 in (± 0.1mm) or less
Alignment accuracy for printing and cutting2,6		±0.020 in (± 0.5mm) or less
Alignment accuracy for printing and cutting when reloading media2,7		Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater
Print Heater Temperature8		Fixed at 95o F (35oC)
Connectivity		USB 2.0
Power-saving function		Automatic sleep feature / AC 100 to 240V ± 10%, 1.5 A, 50/60 Hz
Power Consumption	During Operation	Approx. 90 W
Power Consumption	Sleep Mode	Approx. 5.5 W
Acoustic Noise Level	During Operation	62 dB (A) or less
Acoustic Noise Level	During Standby	42 dB (A) or less
Dimensions/Weight		39.2″ W x 23″ D x 11.5″ H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg)
Operating Conditions	Power on	Temperature: 68o – 90o F (20 to 32o C), humidity: 35 – 80% RH (non condensing)
Operating Conditions	Power off	Temperature: 41o – 104o F (5 to 40o C), humidity: 20 – 80% RH (non condensing)
Included Items		Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User’s Manual, etc
