Description
Specifications

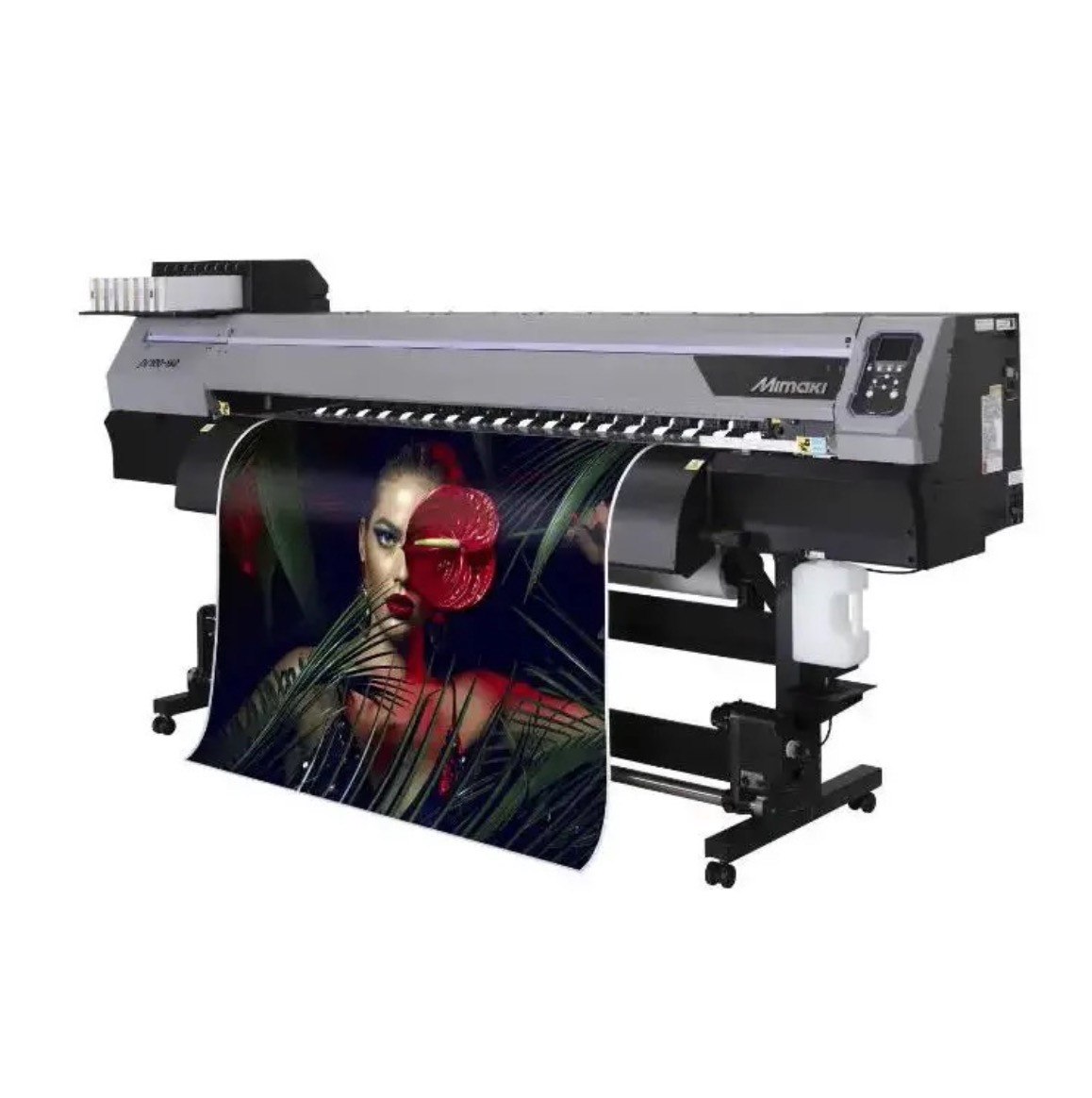

| JV100-160 | |||
|---|---|---|---|
| Cartridge type | Bottle type | ||
| Print head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | 360 dpi, 600 dpi, 720 dpi, 900 dpi, 1200 dpi | ||
| Ink | Type/ Color | Eco-solvent ink ・SS21 (C,M,Y,K,Lc,Lm,Lk, and Or) ・BS4 (C,M,Y, and K) *Only available in specific countries |
Eco-solvent ink ・CS250 (C,M,Y, and K) *Only available in specific countries |
| Capacity | 600ml Ink pack *1 / 2L Ink pack *2 | 1L bottle | |
| Maximum print width | 1,610 mm (63.4 in) | ||
| Media | Maximum width | 1,620 mm (63.8 in) | |
| Thickness | 1 mm or lower | ||
| Roll diameter | φ250 mm or less | ||
| Roll weight | 45 kg or less | ||
| Roll inside diameter | 2 inch / 3 inch | ||
| Certifications | VCCI class A, FCC class A, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC |
||
| Interface | USB2.0 / Ethernet 1000BASE-T | ||
| Power supply | Single-phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2 | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) |
||
| Dimensions (W×D×H) | 2,775 x 700 x 1,392 mm (109.3 x 27.6 x 54.8 in) | 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in) | |
| Weight | 166 kg (366 lb) | 168 kg (370.4 lb) | |
