Description
Specifications

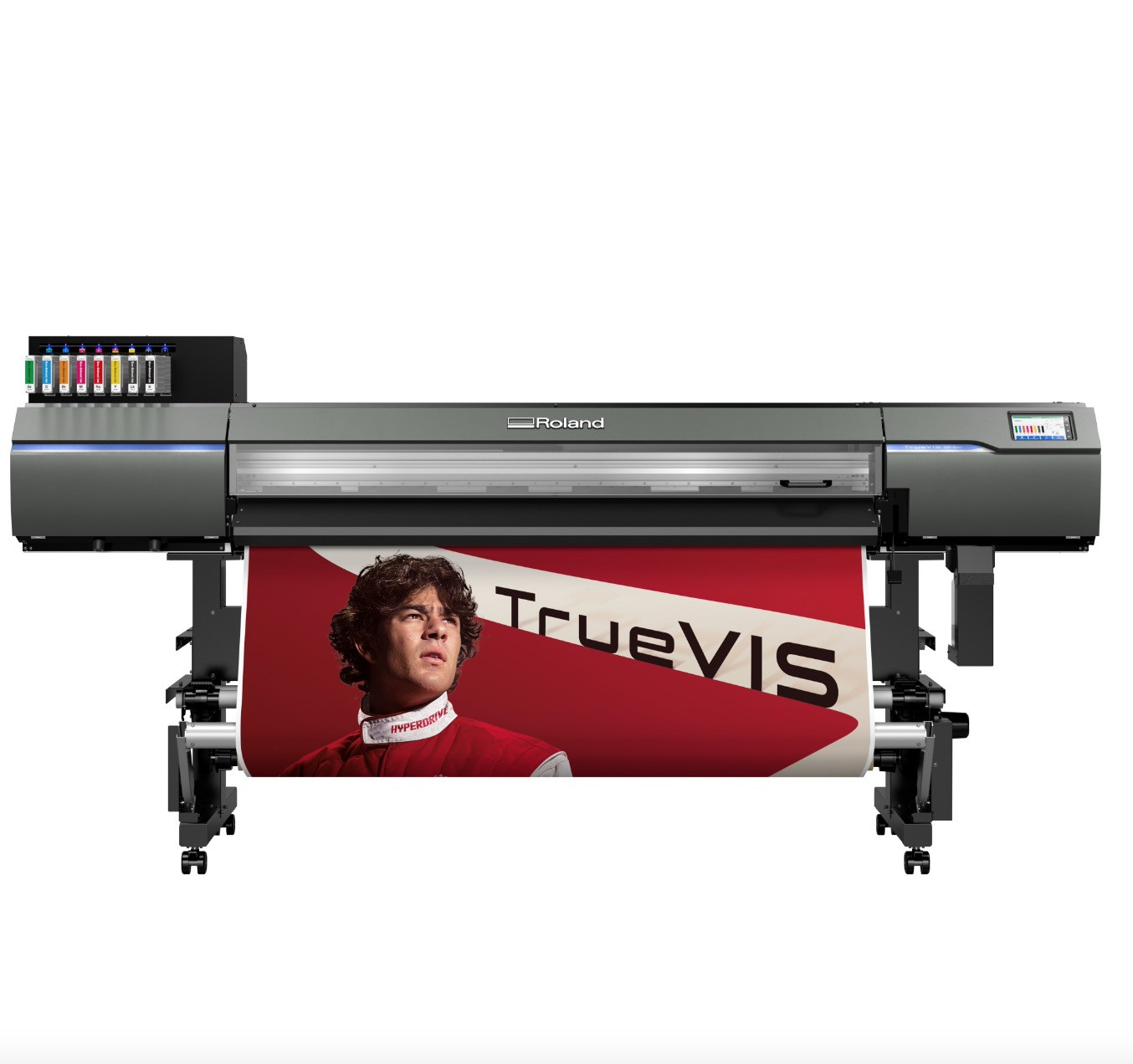

| XP-640 | ||
|---|---|---|
| Printing Method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 39.3 mil (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing Width (*1) | Max. 63.5 in. (1,615 mm) | |
| Ink | Type | Eco-Solvent Ink (TH) 500 ml cartridge |
| Colors | Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Four colors (Cyan, Magenta, Yellow, and Black) |
|
| Printing Resolution (dots per inch) | Max. 1,800 dpi | |
| Media Heating System (*2) | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) |
|
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving Function | Automatic sleep feature | |
| Rated Input | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | |
| Power Consumption | During Operation | Approx. 1,180 W |
| Sleep Mode | Approx. 50 W | |
| Acoustic Noise Level | During Operation | 66 dB (A) or less |
| During Standby | 53 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | |
| Weight | 417 lb. (189 kg) | |
| Environment | During Operation (*3) | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation) |
| Not Operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation) | |
| Included Items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User’s Manual, software (VersaWorks, Roland DG Connect), etc. | |
