Description
Specifications

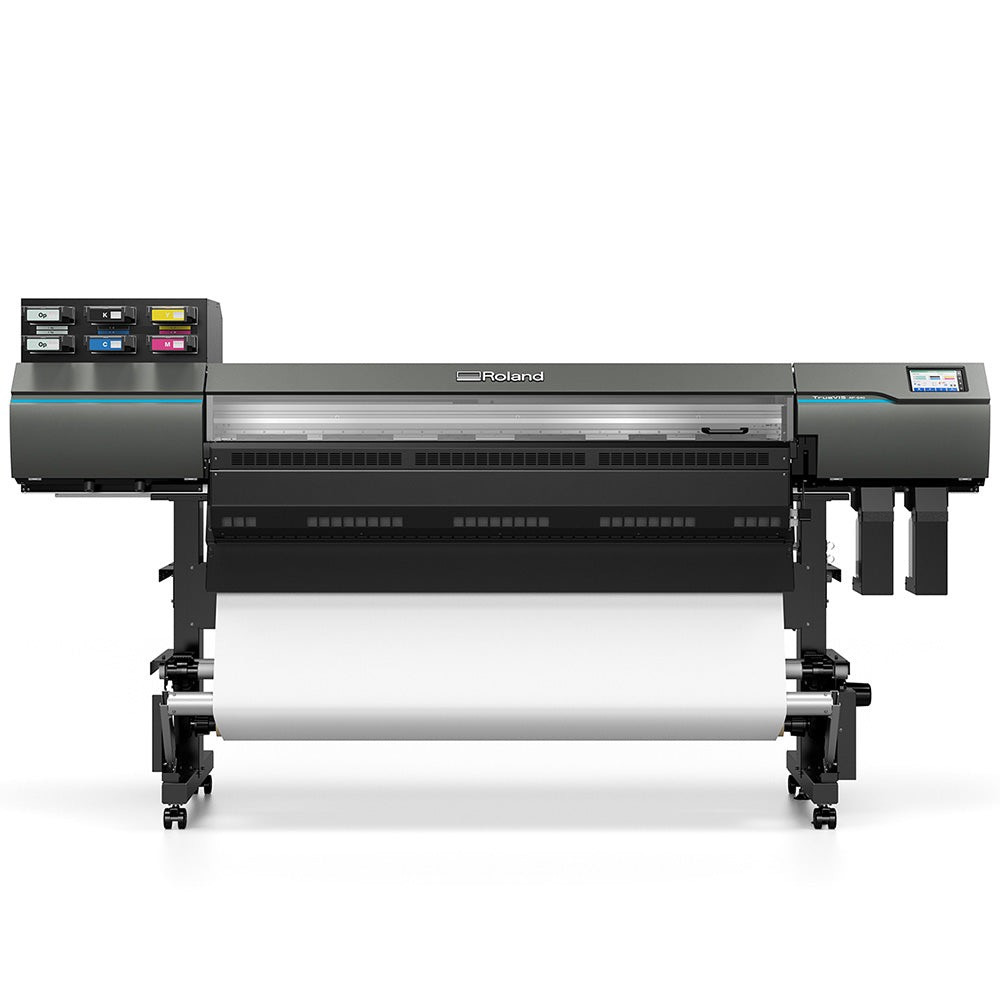

| AP-640 | ||
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 0.039 in. (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing width (*1) | Max. 63.5 in. (1,615 mm) | |
| Ink | Type | Resin/Latex ink 700 ml pouch |
| Colors | Four colors (cyan, magenta, yellow, and black) and optimizer | |
| Printing resolution (dots per inch) | Max. 1200 dpi | |
| Ink drying system (*2) | Print heater set temperature: 77 to 113°F (25 to 45°C) Dryer set temperature: 158 to 230°F (70 to 110°C) |
|
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated Input | Printer: 200-240 Va.c. 50/60 Hz 3 A Dryer 1: 200-240 Va.c. 50/60 Hz 10 A Dryer 2: 200-240 Va.c. 50/60 Hz 10 A |
|
| Power consumption | During operation | Approx. 4,000 W |
| Sleep mode | Approx. 65 W | |
| Acoustic noise level | During operation | 69 dB (A) or less |
| During standby | 53 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 113.7 in. × 33 in. × 61.1 in. (2,886 mm × 836 mm × 1,550 mm) | |
| Weight (with stand) | 587 lb. (266 kg) | |
| Environment (*3) | During operation | Temperature: 68 to 86 °F (20 to 30 °C), Humidity: 20 to 80 %RH (no condensation) |
| Recommended Environment | Temperature: 68 to 77 °F (20 to 25 °C), Humidity: 40 to 60 %RH (no condensation) |
|
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 %RH (no condensation) |
|
| Included items | Dedicated stand, power cords, dryers, media take-up unit, media holders, separating knife, replacement blade, cleaning liquid bottle for maintenance, drain bottle, User’s Manual, software (VersaWorks, Roland DG Connect), etc. | |
