Name: Mimaki TS100-1600 Sublimation Printer with double DX7 print head - cmykgate
Price: 10000 USD
Availability: InStock

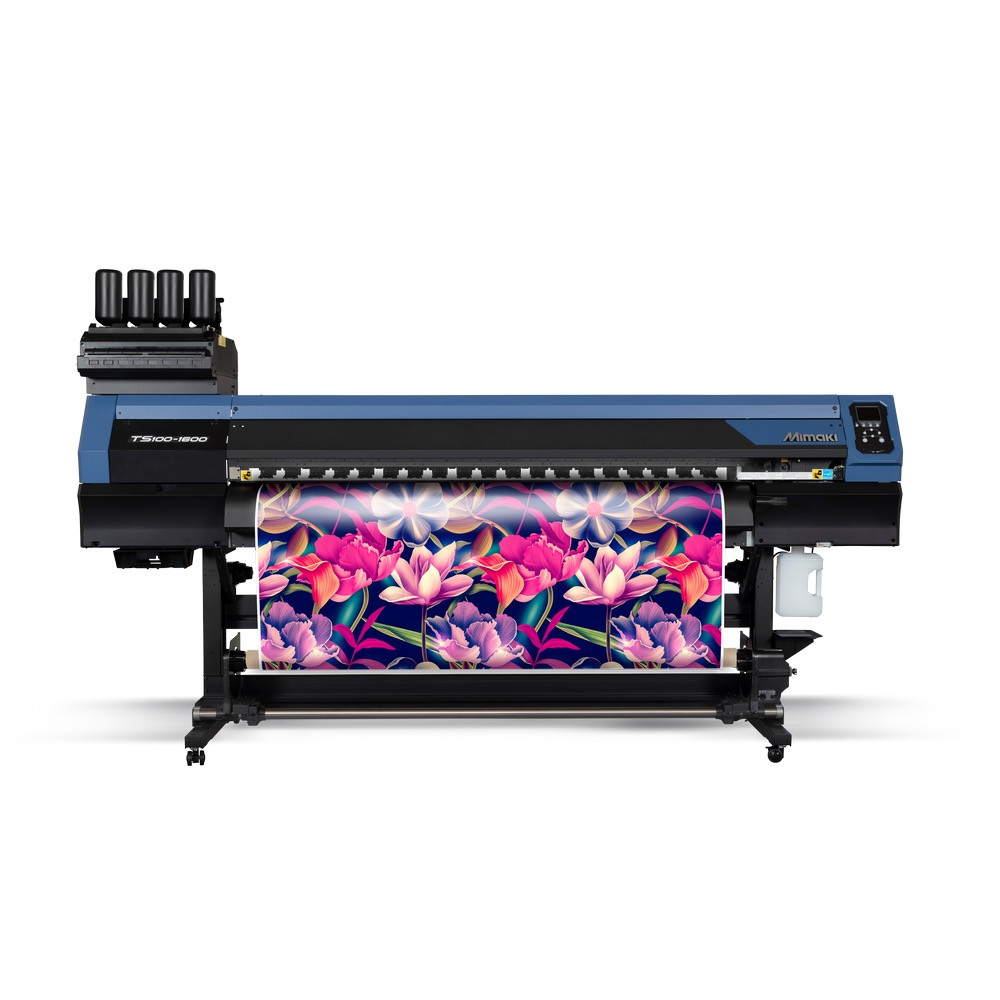

Mimaki TS100-1600 Sublimation Printer with double DX7 print head

Expert printing made easy.
– Well-balanced entry-level models with excellent operational performance, image quality, speed and cost –
100 Series: Sublimation transfer inkjet printer

With two newly developed heads, the TS100-1600 has pursued high quality, high productivity, and stable operation as a Sublimation transfer inkjet printer. Achieves about twice the high-speed printing of conventional machine for textiles^*.

In addition to NCU (Nozzle Check Unit), NRS (Nozzle Recovery System) and MAPS4 (Mimaki Advanced Pass System4), which enable stable high quality printing, the DAS (Dot Adjustment System) was incorporated into the new “100 series” printers. Dot position and feed correction, which used to take a lot of time and effort to do manually, can now be done automatically, reducing the workload on the operator.

* When compared to our previous models: JV150-160 (equipped with water-based sublimation ink) and TS30-1300

Description

Specifications

TS100-1600
Print head		On-demand piezo head (2 staggered layout)
Print resolution		360 dpi, 600 dpi, 720 dpi, 900 dpi
Ink	Type/ Color	Sublimation ink Sb610 (Bl,M,Y,K)
Ink	Capacity	1L bottle
Maximum print width		1,610 mm (63.4″)
Media	Maximum width	1,620 mm (63.8″)
	Thickness	1 mm or lower
	Roll diameter	φ250 mm or less
	Roll weight	45 kg or less
	Roll inside diameter	2 inch / 3 inch
Certifications		VCCI class A, FCC class A, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC
Interface		USB2.0 / Ethernet 1000BASE-T
Power supply		Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz
Operational environment		Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H)		2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1″)
Weight		166 kg (366 lb)

Ink set

Sb610 ［Bl,M,Y,K］	Bl　M　Y　K
