Description
Specifications

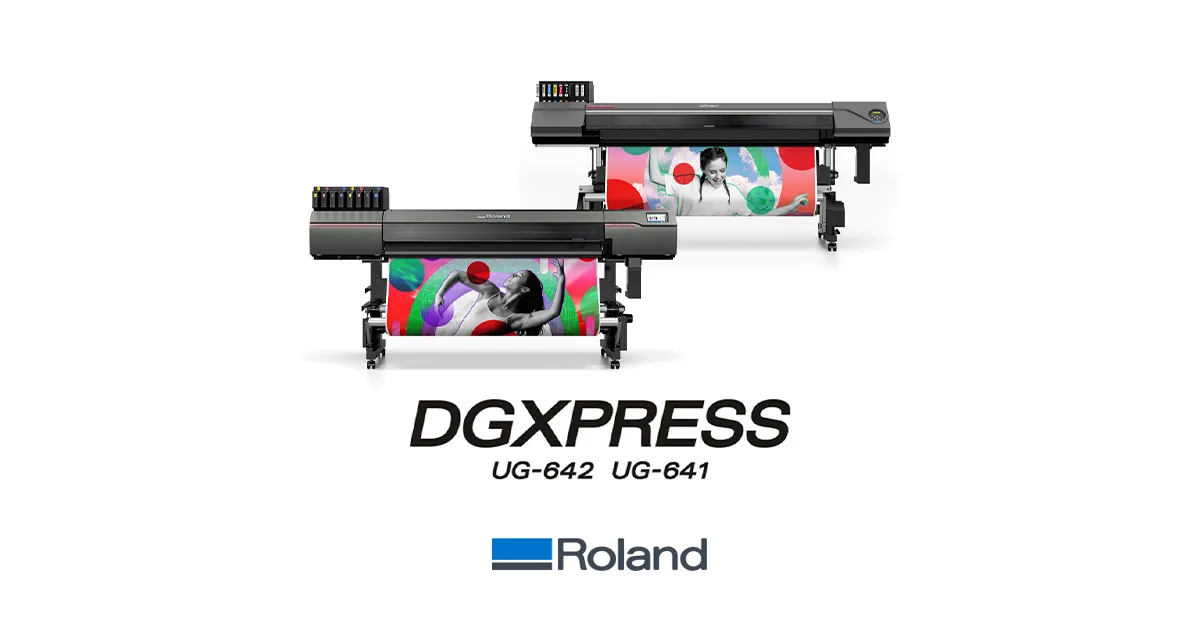

UG-642
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 335 to 1625 mm (13.2 to 64 in.) | |||||
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) | ||||||
| Roll weight | Max. 45 kg (99 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | ||||||
| Ink | Type | UV-ink (D-UAP) 750ml pouch | |||||
| Colours | Six Colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1200 dpi | ||||||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in./s) | ||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Media heating system 3 | Front heater set temperature: 30 to 55 ℃ (86 to 131 °F) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | ||||||
| Power consumption | During operation | Approx. 800 W | |||||
| Sleep mode | Approx. 85 W | ||||||
| Acoustic noise level | During operation | 63 dB (A) or less | |||||
| During standby | 58 dB (A) or less | ||||||
| Dimensions (with stand) | 2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.) | ||||||
| Weight (with stand) | 209 kg (461 lb.) | ||||||
| Environment | During operation 4 | Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
Specifications, designs and dimensions listed may be subject to change without notice
1The length of printing or cutting is subject to the limitations of the program.
2500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
4Operating environment (Use in an operating environment within this range.)
| Extension Table | ET-64L | |||||
| Model | UG-642 | |||||
| Media | Weight | 200 to 300 g/m² (Paperboard such as coated cardboard) | ||||
| Thickness | Max. 1.0 mm | |||||
| Width | 335 to 1,591 mm | |||||
| Length | Max 1,100 mm | |||||
| Printing/Cutting | Width | Max. 1,566 mm | ||||
| Length | Max. 810 mm | |||||
| Blade | ZEC-U3050, ZEC-U3075 | |||||
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 210 to 1625 mm (8.3 to 64 in.) | |||||
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 210 mm (8.2 in.) | ||||||
| Roll weight | Max. 40 kg (88 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | ||||||
| Ink | Type | UV-ink (D-UA) 220ml cartridge (white) UV-ink (D-UA) 500ml cartridge (cyan, magenta, yellow, black, and gloss) |
|||||
| Colours | Six colours(cyan, magenta, yellow, black, white, gloss) Four colours(cyan, magenta, yellow, black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1440 dpi | ||||||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in./s) | ||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | ||||||
| Power consumption | During operation | Approx. 250 W | |||||
| Sleep mode | 40 W | ||||||
| Acoustic noise level | During operation | 63 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (with stand) | 2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.) | ||||||
| Weight (with stand) | 163 kg (360 lb.) | ||||||
| Environment | During operation 3 | Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
Specifications, designs and dimensions listed may be subject to change without notice
1The length of printing or cutting is subject to the limitations of the program.
2500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3Operating environment (Use in an operating environment within this range.)
