Name: MIMAKI CG-60AR/130AR CUTTING PLOTTER - cmykgate
Price: 10000 USD
Availability: InStock

“Stay sharp” More profit per cut

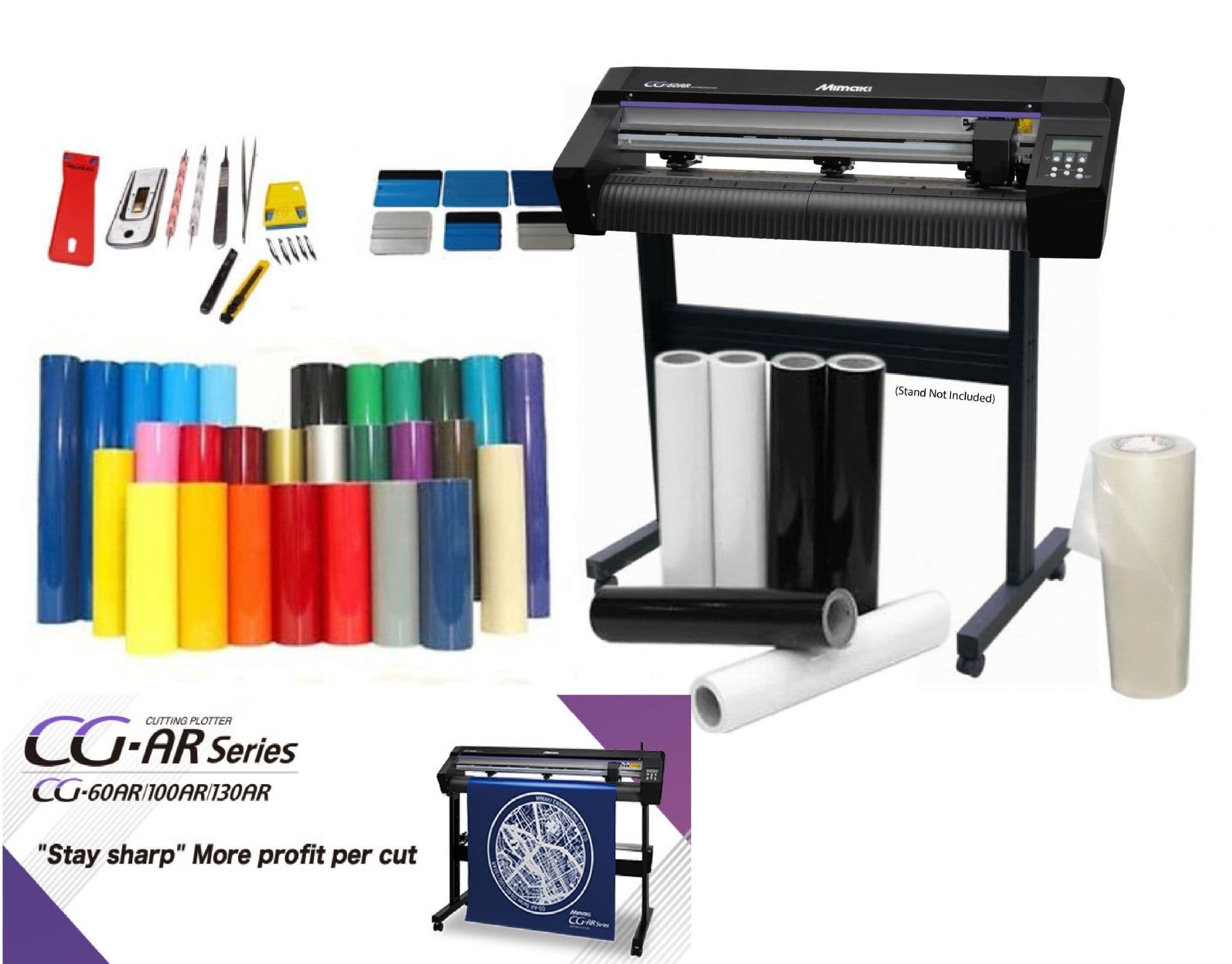

CG-AR Series: Roll to Roll Cutting Plotter

“CG-AR Series” are the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboads. It can also produce packages up to A3 size by using dedicated options.

Description

Specifications

		CG-60AR	CG-100AR	CG-130AR
Acceptable sheet width		90 – 740 mm (3.5 – 29.1″)	90 – 1,250 mm (3.5 – 49.2″)	90 – 1,550 mm (3.5 – 61.0″)
Effective cutting area *1		606 mm × 51 M (23.9″ x 167.3′)	1,070 mm × 51 M (42.1″ x 167.3′)	1,370 mm × 51 M (53.9″ x 167.3′)
Maximum speed		Cutting: 73 cm/s (28.7″/s), Moving at 45° direction: 103 cm/s (40.5″/s)
Adjustable speed range		1 – 10 cm/s (1 cm/s step adjustment): 0.4 – 3.9″/s (0.4″/s step adjustment) 10 – 73 cm/s (5 cm/s step adjustment): 4.0 – 28.7″/s (2.0″/s step adjustment)
Mechanical resolution		X direction: 2.5 μm, Y direction: 5 μm
Command resolution		25 μm, 10μm（MGL-IIc） / 100 μm, 50 μm（MGL-Ic1）
Repeatability *2		± 0.2 mm / 2 M
Effective Repeatability		586 mm × 2 M	1,050 mm × 2 M	1,350 mm × 2 M
Maximum pressure		550g
Range of down pressure	Cutter	10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 550g (10g step)
	Pen	10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 150g (10 g step)
	Creasing tool	10 – 20 g (2 g step), 20 – 100 g (5 g step), 100 – 550g (10g step)
Acceptable sheet 34		Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet and Cardboard (used in combination with an optional sheet table)
Acceptable tool *5		Eccentric cutter, Creasing tool, commercially available ball-point pen
Type of command		MGL-IIc / MGL-Ic1
Interface		USB, RS-232C, Ethernet
Receiver buffer size		About 27 MB as standard (17 MB when sorting is effective)
Operational environment		Temperature: 5 – 35 degC (41 – 95 degF), Humidity: 35 – 75 ％ Rh (Non-condensing)
Power supply		AC 100 V – 240 V 1A 50/60Hz
Power consumption		168W or less	228W or less
Dimensions（W×D×H）		1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0″) 1,010 × 580 × 1,160 mm 6 (39.8 × 22.8 × 45.7″) 6	1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7″)	1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7″)
Weight		17kg (37.5 lb) 27kg (59.5 lb) *6	35kg (77.2 lb)	43kg (94.8 lb)
Stand		Options	Standard equipment
