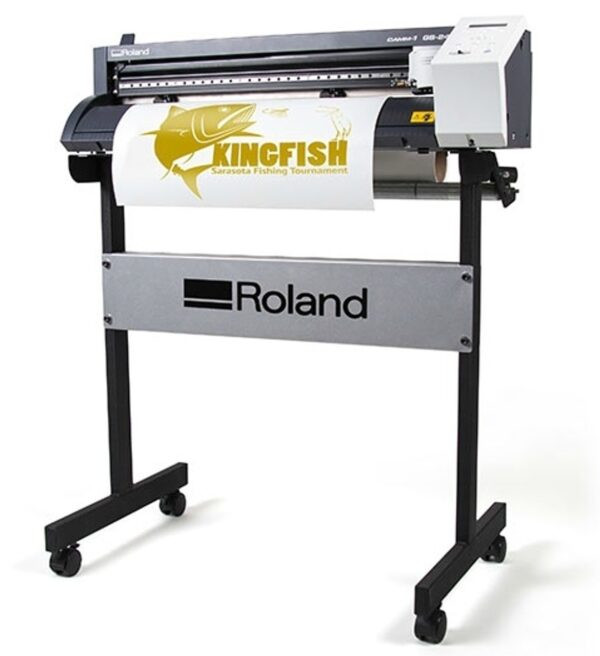

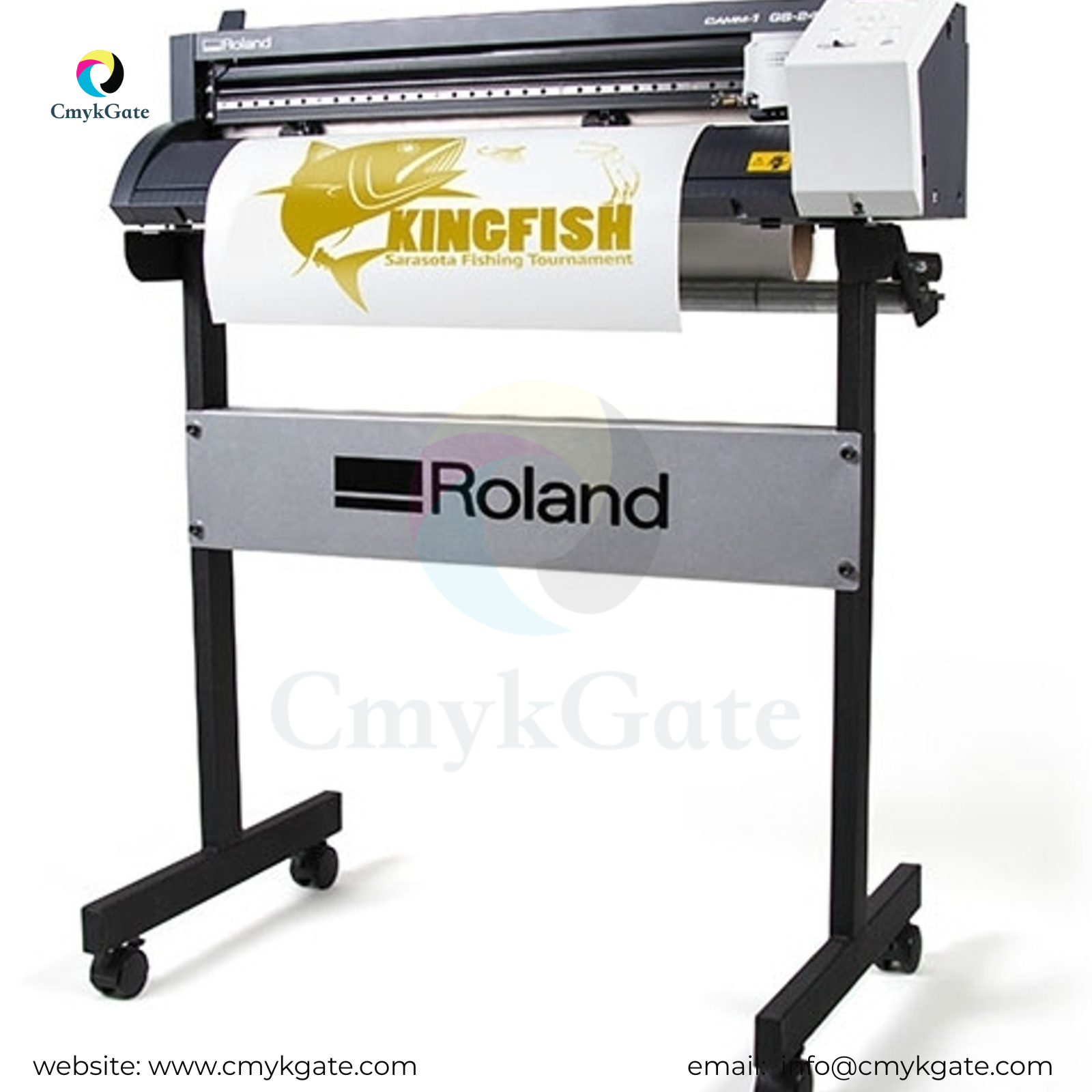

GS-24 Desktop Vinyl Cutter

Compact, powerful and easy to use, the GS-24 vinyl desktop cutting plotter is perfect for starting your customization business or bringing graphics production in-house.

Intuitive, user-friendly operation
Increased power to easily cut hundreds of materials
Fast and accurate cut performance
Built to fit into your workflow
Stand included with purchase holds roll media and offers smooth set up

Description

VersaSTUDIO GS-24

Drive system		Digital control servo motor
Cutting mechanism		Media-moving method
Acceptable material size	Width	1.97 in. – 27.5 in. (50 – 700 mm)
	Length	Roll material: no restriction Flat material: 3.94 in. (100 mm) or more
Maximum cutting area		22.9 in. (Width) × 984 in. (Length) (584 mm × 25,000 mm)
Cutter Blade		CAMM-1 series blade (ZEC-U5032 )
Cutting speed		0.39 – 33.4 in./s (10 – 850 mm/s)
Blade force		30 – 500 gf
Mechanical resolution		0.49 mil./step (0.0125 mm/step)
Software resolution		0.98 mil./step (0.025 mm/step)
Distance accuracy^*1		Error of less than ±0.2% of distance traveled or 3.94 mil. (0.1 mm), whichever is greater
Repeatability ^{1, 2}		3.9 mil (0.1 mm) or less
Alignment accuracy for cutting printed material ^{1, 3}		±39.4 mil. (±1 mm) or less for movement distance of 8.3 in. (210 mm) or less in material-feed direction and movement distance of 6.7 in. (170 mm) or less in width direction (Does not take influence of printer and material into account)
Connectivity		• Ethernet (automatic switching between 10BASE-T and 100BASE-TX) • USB 2.0 (FULL SPEED compliant)
Replot memory		2 MB (buffer size: 8 MB)
Command system		CAMM-GLⅢ
Power supply		Dedicated AC adapter Input: 100 – 240 Vac, 50/60 Hz Output: 24 Vdc 2.7 A
Rated current		1.0 A
Power consumption		Approx. 24 W
Acoustic noise level	During operation	70 dB (A) or less
	During standby	40 dB (A) or less
Outer dimensions		33.9 in. (Width) × 12.6 in. (Depth) × 9.3 in. (Height) (860 mm × 319 mm × 235 mm)
Weight		30 lb. (13.5 kg)
Environment	Temperature	41 to 104 °F (5 – 40 °C)
	Humidity	20 – 80 %RH (no condensation)
Included items		Cutter, Stand, Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals
