Description
Product Overview

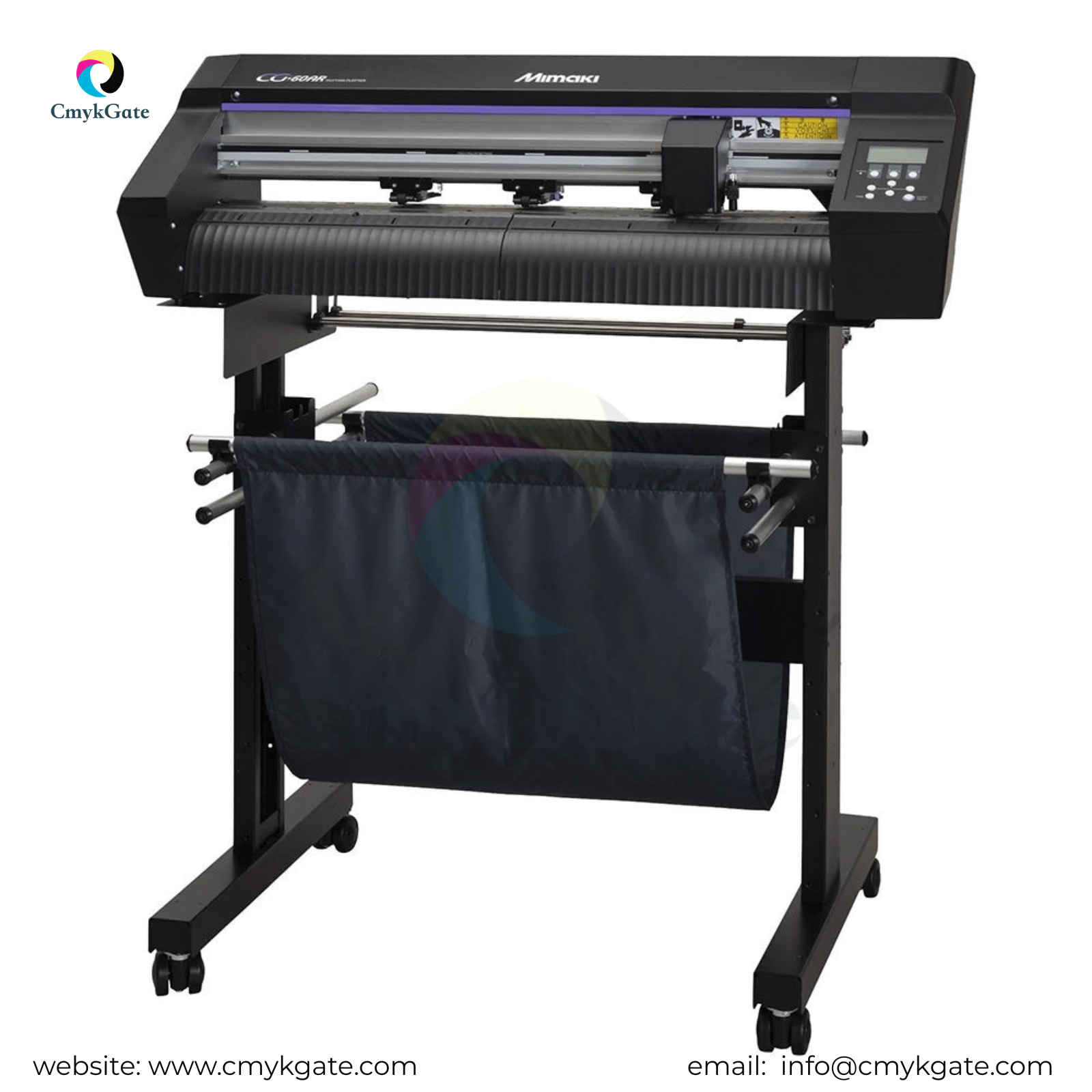

The Mimaki CG-60AR Cutting Plotter is a professional compact cutting solution designed for sign makers, print shops, label manufacturers and graphics production companies.
Featuring a 606 mm effective cutting width, maximum cutting force of 550g and cutting speed up to 73 cm/s, the CG-60AR delivers accurate contour cutting and stable media handling for a wide range of materials.
Equipped with USB, RS-232C and Ethernet connectivity, the CG-60AR provides reliable performance for commercial print-and-cut workflows, sticker production, signage and packaging applications.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CG-60AR |
| Brand | Mimaki |
| Condition | Brand New |
| Machine Type | Cutting Plotter with Stand |
| Effective Cutting Area | 606 mm × 51 m |
| Acceptable Sheet Width | 90 – 740 mm |
| Maximum Cutting Speed | 73 cm/s |
| Maximum Moving Speed | 103 cm/s |
| Mechanical Resolution | X: 2.5 μm / Y: 5 μm |
| Command Resolution | 25 μm / 10 μm (MGL-IIc), 100 μm / 50 μm (MGL-Ic1) |
| Repeatability | ±0.2 mm / 2 m |
| Effective Repeatability | 586 mm × 2 m |
| Maximum Cutting Pressure | 550 g |
| Interface | USB, RS-232C, Ethernet |
| Receiver Buffer Size | 27 MB |
| Power Supply | AC100V–240V |
| Power Consumption | ≤168 W |
| Dimensions | 1010 × 580 × 1160 mm |
| Weight | 27 kg |
| Stand | Included |
Key Features
✔ 606 mm effective cutting width
✔ Maximum cutting force up to 550g
✔ High-speed cutting up to 73 cm/s
✔ Precision contour cutting
✔ Ethernet, USB and RS-232C connectivity
✔ Supports cutter, pen and creasing tools
✔ Stable long-length media tracking
✔ Compact footprint for professional production
✔ Ideal for print-and-cut workflows
✔ Reliable performance for commercial applications
Applications
• Vinyl Cutting
• Contour Cutting
• Sticker Production
• Label Production
• Decal Cutting
• Heat Transfer Vinyl (HTV)
• Window Graphics
• Reflective Film Cutting
• Sign Making
• Packaging Prototype Cutting
• Cardboard Sample Making
• Advertising Production
Compatible Materials
• Self-Adhesive Vinyl
• Reflective Film
• Fluorescent Vinyl
• Heat Transfer Vinyl
• Rubber Sheet
• Cardboard
• Graphic Films
• Window Film
• Sticker Media
• Signage Materials
Why Choose Mimaki CG-60AR
The Mimaki CG-60AR is a professional desktop cutting plotter designed for businesses requiring high cutting precision in a compact workspace.
Compared with entry-level vinyl cutters, the CG-60AR provides stronger cutting force, Ethernet networking, superior tracking accuracy and support for multiple tools including cutters, pens and creasing tools.
It is an excellent choice for sticker manufacturers, sign shops, apparel decoration businesses and commercial graphics producers.
FAQ
Is the Mimaki CG-60AR a brand new machine?
Yes, we supply brand new Mimaki CG-60AR cutting plotters.
Does the machine include a stand?
Yes, this version includes the original Mimaki stand.
What is the maximum cutting speed?
The maximum cutting speed is 73 cm/s.
What is the maximum cutting force?
The maximum cutting pressure is 550g.
What materials can the CG-60AR cut?
The machine supports self-adhesive vinyl, reflective film, heat transfer vinyl, rubber sheet, cardboard and various signage materials.
Does the CG-60AR support contour cutting?
Yes, the Mimaki CG-60AR supports high-precision contour cutting for professional print-and-cut workflows.
Can you provide international shipping?
Yes. Worldwide shipping is available.
