Name: Oki 1024HG-L 28PL Solvent / UV Printhead - cmykgate
Price: 10000 USD
Availability: InStock

Description

Product Overview

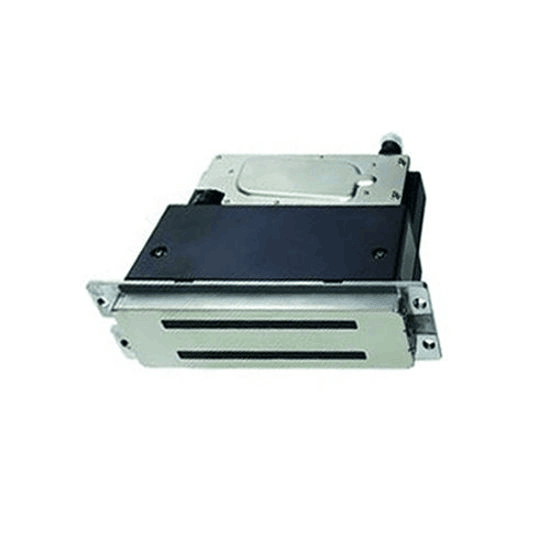

This Seiko 1024HG-L 28PL Solvent / UV printhead is suitable for a range of printers, including Infiniti printers. This printhead is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IEB1024N0L-2F01 replacing IEA1024N07-2F01 and IEB1024T0L-2G01). We recommend to change the head cables when installing a new printhead.

Product Specifications:

– Drop Volume: 1024HG-L = 28 pL @ 1 drop binary, 6m/s
– Native Nozzle Resolution:180 npi (2 colors),360 npi (1 color)
– Usable Ink Types: Oil-, UV-, Sovlent-based
– Possible Print directions: Vertical and Horizontal
– Number of grey levels: 8
– Jetting frequency: TBD
– Active Nozzles: 1024 at 4 rows
– Ink Inlets: 2
– Print Width: 72.17 mm
– Printhead weight: less than 570 g
– Dimensions: 137.0 x 38.0 x 115.7 mm
– Driving Interface: Parallel interface, I2C-compatible serial communication

This printhead carries a manufacturer warranty.

Country of origin : Japan
