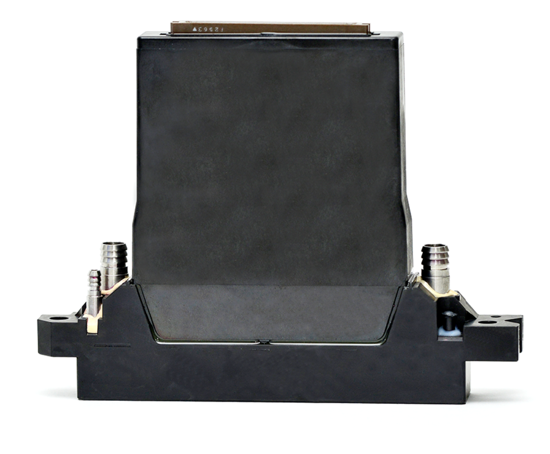

Konica Minolta KM1800i SHC Printhead

Konica KM1800i SHC printhead is a fast and reliable solution for applications requiring high quality such as Coding and marking, Packaging applications, Plastic card decoration, Security applications, Printed electronics.

The KM1800iSHC Printhead is:

84kHz shear mode actuation and native 600 dpi resolution over 75mm print swathe.
Simple to integrate, tough and reliable with good fluid compatibility.
Designed to be used in high quality single-pass print systems. Primarily designed for UV inks it can also be used with higher viscosity water-based inks or hot melt inks.
Using proven bulk piezoelectric technology to deliver 3.5pl drop volumes at 600 dpi resolution in a narrow 19.8mm footprint.
Designed to be operated in a wide range of different orientations. The printhead is suitable for use with recirculating ink systems for example for white or metallic inks. printheads can be used in binary or greyscale (3bit) modes.
Proven in Konica Minolta’s B2 sheet-fed KM-1 printer as well as Industrial Inkjet’s Mono and ColourPrint HiQ series.

Product Specifications:

Available ink types: UV, Solvent, Water-based
Technology: Independent channel, on-demand piezo
Number of nozzles: 1776 (296 x 6 rows)
Channel resolution: 42.3μm pitch (600 dpi: 6 rows x 100 dpi)
Grey scale: 8 levels
Typical frequency: 80kHz
Drive voltage: 18 +/- 3V
Printing width: 75.14 mm
Overall row spacing: 4.74 mm
Drop velocity: 6.0 m/sec
Dimensions: Height 106.82 mm x Width 19.8 mm x Length 137.4 mm Weight Less than 205 gm
Drop size: 3.5pl
Max frequency: 84kHz
This printhead carries a manufacturer warranty.
Country of origin : Japan
