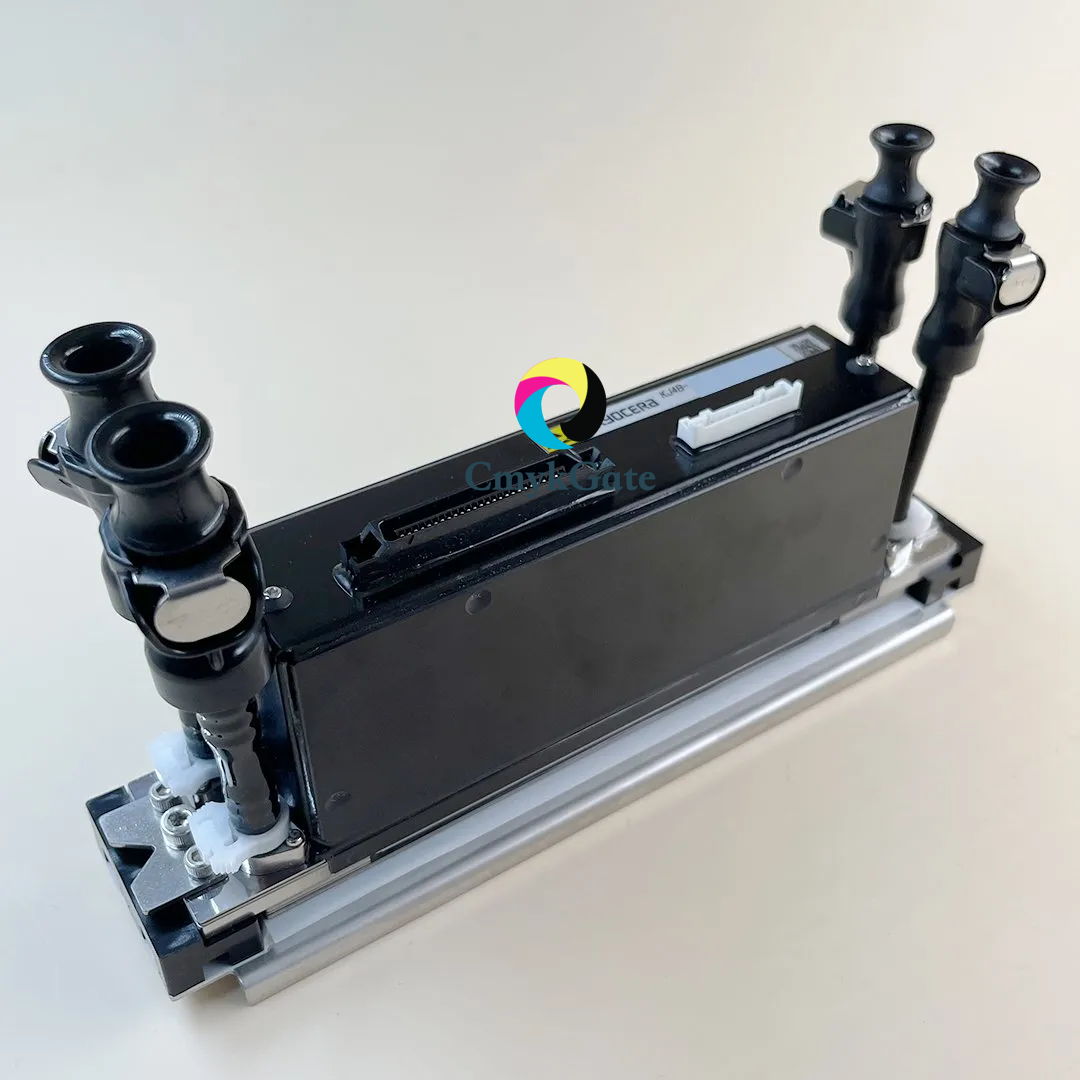

KJ4B-QA06NTB-HZ5V-4A ,Kyocera Print Head

The latest Kyocera KJ4B-QA model is specifically designed for high-speed printing with water-based inks. This 600dpi one-color printhead features a maximum drive frequency of 30kHz. It achieves high-quality output with a small drop volume of 5pl at a speed of 75 m/min, utilizing 2,656 nozzles arranged across a 108.25 mm wide print swathe with a 0.042mm pitch, resulting in 30,000 drops per second.

SKU:KJ4B-QA06NTB-HZ5V-4A

Manufacturer part number: KJ4B-QA06NTB-HZ5V-4A

Manufacturer: Kyocera

Description

Product Overview

The Kyocera KJ4B-QA printhead is equipped with internal filters to eliminate foreign particles in the ink and an internal heater to mitigate the effects of external temperatures. Its unique ink channel design ensures a stable ink supply, enhancing print reliability and quality.

The Kyocera KJ4B series is engineered for high-speed printing with water-based ink, offering exceptional productivity for both single-pass applications like transaction, document, and security printing with MICR ink, and multi-pass applications, including textile printing.

Number of Nozzles		2656 (2558)
Effective Print Width (mm)		108.25
Ink		AQ
Maximum Drive Frequency (kHz)		30
Resolution (dpi)		600dpi*600dpi
Print Speed *1 (m/min)		76.2
Print Speed*1 (pl)	Minimum	5
	Maximum	12
Nozzle Recirculation		No
WidthLengthHeight (mm)		2002557.9
Recommended Ink Viscosity2 (mPa s)		5.0~6.0
