Name: KJ4B-0300 ,Kyocera Inkjet Printhead - cmykgate
SKU: KJ4B-0300
Price: 10000 USD
Availability: InStock

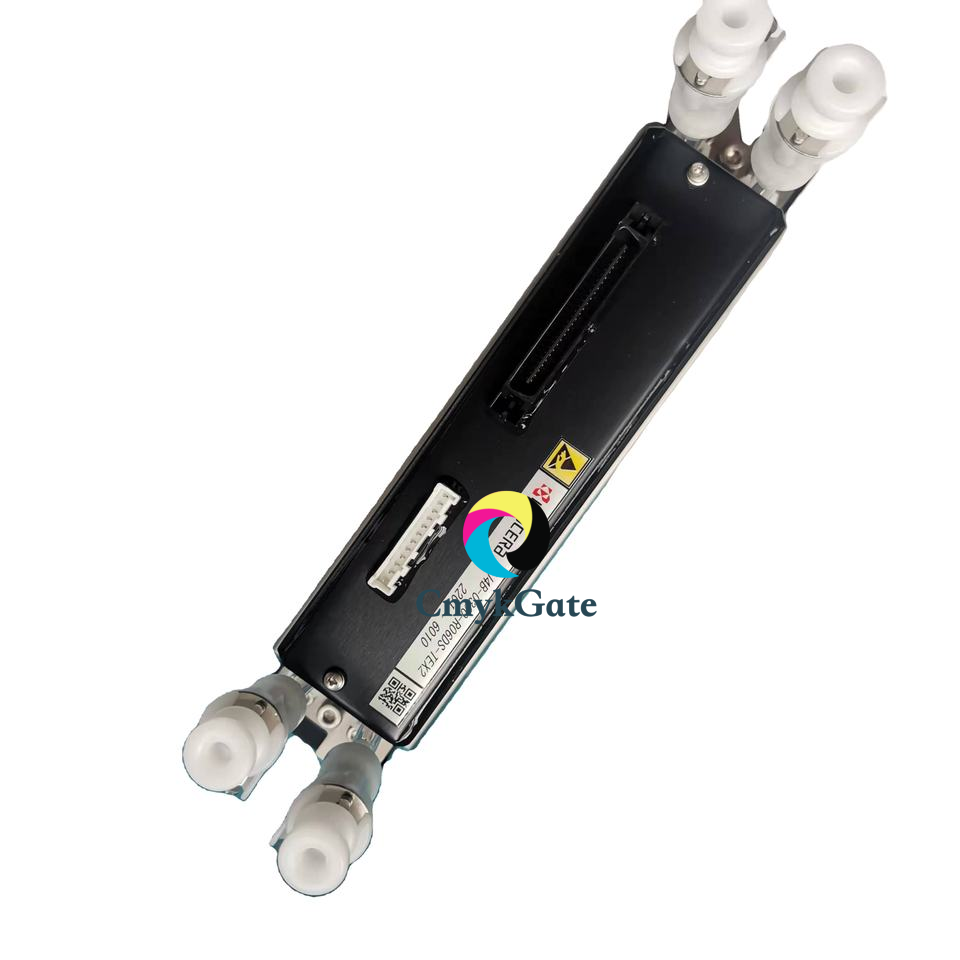

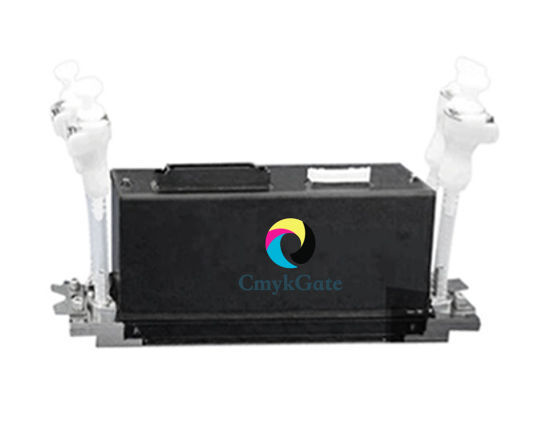

KJ4B-0300 ,Kyocera Inkjet Printhead

This original Kyocera KJ4B-0300 (STANDARD) printhead is compatible with a wide range of direct-to-textile printers including MS and Reggiani printers. Please read carefully the full description to select the right printhead model.

SKU: KJ4B-0300

Manufacturer part number: KJ4B-0300

Manufacturer: Kyocera

SKU: KJ4B-0300 Category: Kyocera Tag: KJ4B-0300 Brand: Kyoceara

Description

Product Overview

This Kyocera KJ4B-0300 is designed for high speed printing with water-based inks, in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QA is equipped with internal filters to preventparticles to reach the nozzle plate and an internal heater that adjusts the temperature. We recommend to change the head cables when installing a new printhead.
