Description
Product Overview

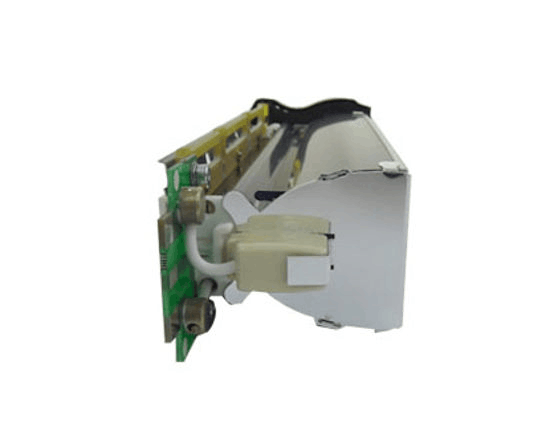

This Subzero 170 Bulb Kit H is suitable for SwissQprint Nyala & Impala printers. This is the original SwissQprint part.The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.This lamp comes with an alcohol cleaning wipe to keep the lamp stain-free during installation.
Subzero 170
- Power: 100 W/cm variable
Arc length: 170mm
SubZero Standard Features
- Ultra light weight with compact ‘footprint’
High intensity reflector system
Replaceable quartz front plate
Quick change lamp cassette
Advanced halide bulb technology
Integrated air-cooling
Switch-mode electronic power supply
Hi-flex plug and socket cabling connections
500 hours coverage under normal conditions
6 months shelf life
Additional SubZero Options
- High Speed Electronic Shutter
Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
Enhanced optics
Subzero Compliances
ISO CE 60950-1
(UL CUL CB 60950-1)
CE EN 60204
EMC EN 55015
EMC EN 61000
Power Supply
Switch-mode Electronic
200 – 250V 50 – 60Hz
Printer Compatibility
DYSS Apollo GF2616-16F/GF2616-16SFWFV/ GF2616-16SRWRV/GF2630-16SFWW/GF2630-20FMW
DYSS Apollo GH2600-08F/GH2600-08SF/GH2600-08SR/GH2600-10FM
DYSS Apollo GH2600-12S
DYSS Apollo GH2600-12SFWFV
DYSS Apollo PTP18/3202-KC
DYSS Apollo PTP18/3204-KC
DYSS Apollo PTP18/3206-KC
DYSS Apollo PTP1804-KL/PTP1806-KL/PTP1808-KL
DYSS Apollo PTP3204-KL/PTP3204-KM/PTP3206-KL/PTP3208-KL/PZ 3208-KX/PZ3204-KX/PZ3206-KX
DYSS Apollo R160/R220/R260
DYSS Apollo UV-RF2200
SwissQprint Impala
