Description
Product Overview

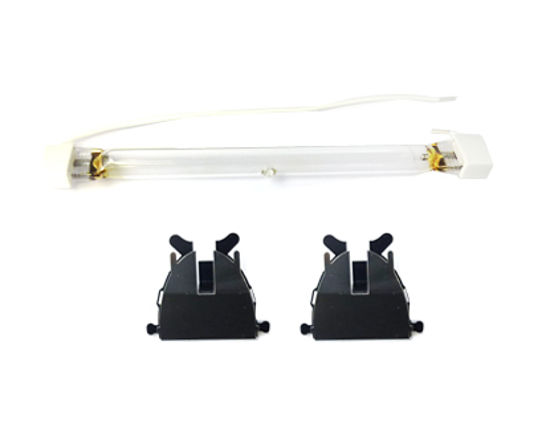

This UV Bulb kit is suitable for SwissQprint Impala and Dyss Apollo printers. This is the original UV lamp.The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.Some version of SwissQPrint Impala uses Subzero 220 H UV bulb (ULASW19085). Please check the UV bulb arc length before ordering.
Subzero 170
- Power: 100 W/cm variable
- Arc length: 16.7cm
- Total length: 23.8cm
- 500 hours coverage under normal conditions
- 6 months shelf life
SubZero Standard Features:
- Ultra light weight with compact ‘footprint’
- High intensity reflector system
- Replaceable quartz front plate
- Quick change lamp cassette
- Advanced halide bulb technology
- Integrated air-cooling
- Switch-mode electronic power supply
- Hi-flex plug and socket cabling connections
Additional SubZero Options
- High Speed Electronic Shutter
- Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
- Enhanced optics
SubZero Compliances (Pending)
- ISO CE 60950-1
- (UL CUL CB 60950-1)
- CE EN 60204
- EMC EN 55015
- EMC EN 61000
Power Supply
- Switch-mode Electronic
- 200 – 250V 50 – 60Hz
Printer Compatibility
DYSS Apollo GF2616-16SFWFV/GF2616-16SRWRV
DYSS Apollo GF2630-16SFWW/GF2630-20FMW
DYSS Apollo GH2600-08F/GH2600-08SF
DYSS Apollo GH2600-08SR/GH2600-10FM
DYSS Apollo GH2600-12S/GH2600-12SFWFV
DYSS Apollo PTP18/3202-KC
DYSS Apollo PTP18/3204-KC
DYSS Apollo PTP18/3206-KC
DYSS Apollo PTP1804-KL/PTP1806-KL
DYSS Apollo PTP1808-KL/PTP3204-KL/PTP3204-KM/PTP3206-KL
DYSS Apollo PTP3208-KL/PZ 3208-KX/PZ3204-KX/PZ3206-KX
DYSS Apollo R160/R220/R260
DYSS Apollo UV-RF2200
SwissQprint Impala
