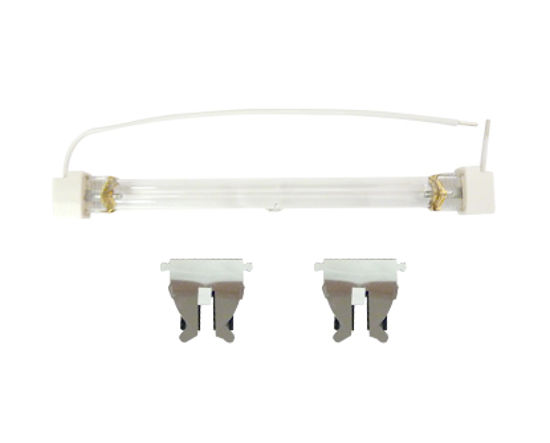

Inktec Jetrix 2030FRK SubZero 170 Bulb Kit H

This Subzero 170 Bulb Kit H is suitable for Inktec Jetrix 2030FRK printers. This is the original Inktec part.The SubZero 170 deliver a 16% increase in UV output. With a 170mm cure length the new lamp units deliver 230% more UV energy than the existing SubZero 085 while maintaining the small footprint required for easy integration. The 170 can also be supplied complete with the proven SubZero integral high-speed electronic shutter. This system features a programmed electronic actuation ensuring a fast cycle time (80ms) with inertia-less braking, enabling the shutter to be closed or opened during the print cycle without transmitting vibration to the print engine. Detailed research and lengthy cycle testing has enabled a design that offers exceptional service life eliminating unnecessary downtime and maintenance.

Subzero 170

• Power: 100 W/cm variable
• Arc length: 170mm
• Total length: 236mm
• 500 hours warranty
• 6 months shelf life

SubZero Standard Features

• Ultra light weight with compact ‘footprint’
• High intensity reflector system
• Replaceable quartz front plate
• Quick change lamp cassette
• Advanced halide bulb technology
• Integrated air-cooling
• Switch-mode electronic power supply
• Hi-flex plug and socket cabling connections

Additional SubZero Options

• High Speed Electronic Shutter
• Alternative bulb spectra ‘H’,’D’,’V’ or ‘A’
• Enhanced optics

Subzero Compliances

ISO CE 60950-1

(UL CUL CB 60950-1)

CE EN 60204

EMC EN 55015

EMC EN 61000

Power Supply

Switch-mode Electronic
200 – 250V 50 – 60Hz

Printer Compatibility

Inktec Jetrix 2030FK
Inktec Jetrix 2030FRK
Inktec Jetrix KX7
