Name: Inkjet Printer Relay OMRON LY2N-J 24VDC - cmykgate
Price: 10000 USD
Availability: InStock

Description

Product Overview

Omron LY2N-J relay is an electronic control device, it has a control system (also known as the input loop) and the controlled system (also known as the output loop), usually used in the automatic control circuit, it is actually a small current to control the larger current of an “automatic switch”. Therefore, it plays the role of automatic regulation, safety protection, and conversion circuits in the circuit.

Printer Compatibility

Inquiry Form

Welcome to vist cmykgate. Please leave your contact information below, we will reply you very soon.

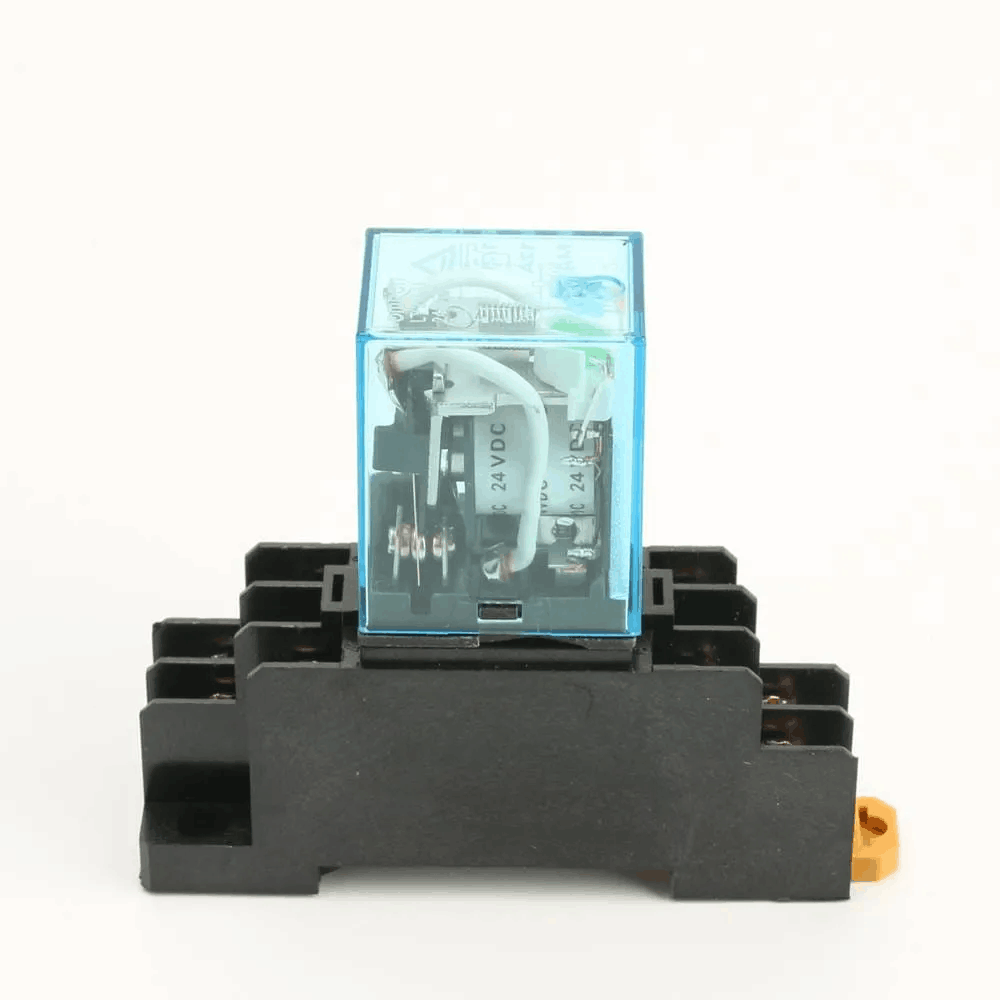

Relay OMRON LY2N-J 24VDC

Attribute	Value
Coil Voltage	24V dc
Coil Resistance	662 Ω
Isolation Coil To Contact	2kV ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Terminal Type	Plug In
Number of Poles	2
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	220V dc
Maximum Switching Power DC	120 W
Series	MY
Height	36mm
Length	28mm
Maximum Switching Power AC	1.1 kVA
Depth	21.5mm
