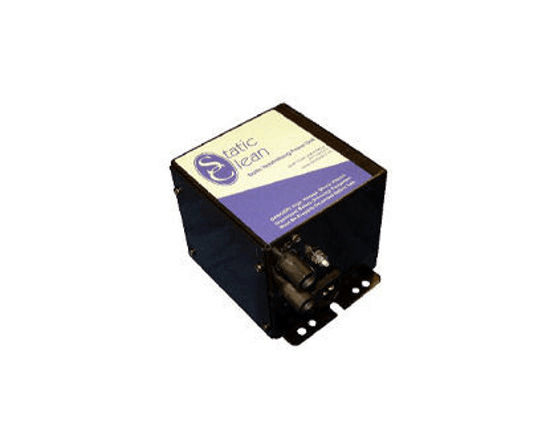

EFI Vutek QS Series AC Power Supply 7.5KV 115/230V – P3978-A

This AC Power Supply 7.5Kv 115/230V is a static neutralizing power supply, used by the Static Bars on VUTEk QS-series printers. This is the original VUTEk part (P3978-A)

Specifications:

Type: high-voltage transformer with resistive output coupling
Input Vpltage: 120/240 Vac
Frequency: 50/60 Hz
Output Voltage: 7.5 kVrms nom.
Input Current: 0.2/0.1 A max.
Input Fusing: 0.315 A time-delay
Output Current: 4 mA max.
Ambient Temperature: < or = 40C° (104F°)
Line Cord: 6′ detachable with NEMA 5-15 grounded plugs available
Weight: 1.8 kg (4.4 lb)
Dimensions : width : 119 mm (4.7 in.)
height: 109mm (4.3 in)
depth: (6.0 in.)

Printer Compatibility

EFI Vutek TX3250r
EFI Vutek GS2000/GS2000 Pro
EFI Vutek GS2000LX/GS2000LX Pro
EFI Vutek GS3200/GS3200 Pro
EFI Vutek GS3250/GS3250 Pro
EFI Vutek GS3250LX/GS3250LX Pro
EFI Vutek GS3250r
EFI Vutek GS5000r
EFI Vutek PressVu UV 180/600
EFI Vutek PressVu UV 200/600
EFI Vutek PressVu UV 320/400
EFI Vutek QS2 Pro
EFI Vutek QS2000
EFI Vutek QS220
EFI Vutek QS3 Pro
EFI Vutek QS3200
EFI Vutek QS3200r/QS3220
EFI Vutek QS3250r
