Name: Inkjet Printer Pall® UltiFuzor™ 41110 Series Degas Module - cmykgate
Price: 10000 USD
Availability: InStock

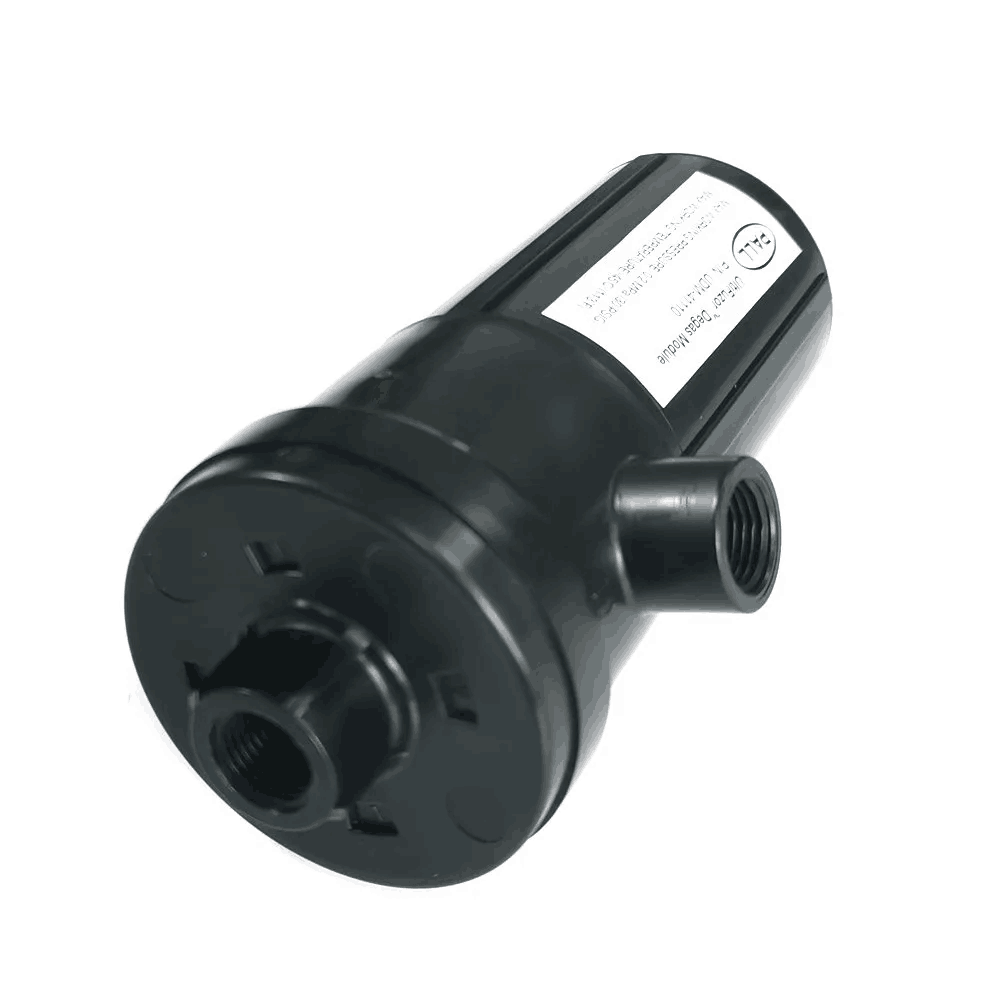

Inkjet Printer Pall® UltiFuzor™ 41110 Series Degas Module

Original Pall Degas Module UDM-41110 Description

The UltiFuzor™ 41110 series degas module represents the latest advancement in Pall’s degassing technology. The UDM41110PT1 module enables digital inkjet printers to achieve high dissolved oxygen (DO) removal with minimal pressure drop, preventing bubble formation and ensuring optimal printer performance.

Max Working Pressure: 0.2 MPa (30 PSIG)

Max Working Temperature: 45 ℃(113 ℉)

Flow: 0~300 ml/min

Description

Product Overview

The UltiFuzor™ 41110 series degas module represents the latest advancement in Pall’s degassing technology. The UDM41110PT1 module enables digital inkjet printers to achieve high dissolved oxygen (DO) removal with minimal pressure drop, preventing bubble formation and ensuring optimal printer performance.
It runs with a max working pressure of 0.2 MPa (30 PSIG) and a max working temperature of 45℃(113℉) to ensure normal operation. Its larger design accommodates flow rate requirements up to 3 L/min, making the UDM41110PT1 ideal for digital textile printing applications.

Printer Compatibility

Inquiry Form

Welcome to vist cmykgate. Please leave your contact information below, we will reply you very soon.

Original Pall Degas Module UDM-41110 Specifications

Maximum operating pressure	0.2 MPaG @ 45 °C / 30 psig @ 113 °F
Maximum operating temperature	45 °C / 113 °F
Flow guidelines	0 – 3 L/min (3000 mL/min)
Typical membrane surface area	0.28 m² / 3.01 ft²
Connections (Inlet/Outlet/vacuum)	1/8” NPT, Female
Suitable for	UV inks
