HDMI Xerox Drive Module XDM M-Series-109K03410

Product Overview

This Drive Module (XDM) W-Series, HDMI is suitable for Xerox M-Series printheads. This is the original Xerox part (number 109K02911).

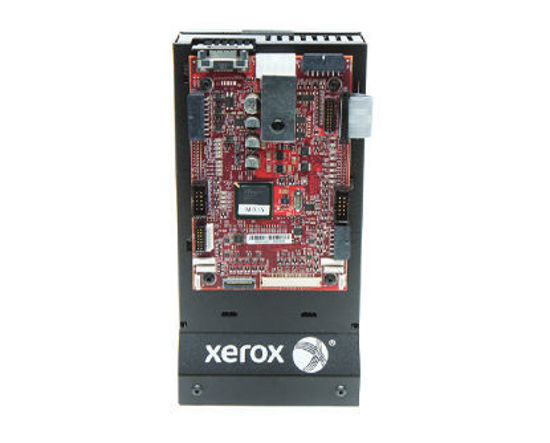

The XDM is a complete electronics drive system for Xerox® printheads. It features the waveform amplifier and the printhead interface board, and can control many other valves, solenoids or motors.

Features and benefits:

Enables System Integrators to connect the drive module to either the M-Series or W-Series Heads — daisy chain up to 8 heads.
Control components in the solution delivery system, such as pump/valve control.
Automatically send printhead executable commands
Monitor and control thermals of the printheads
Interfaces with the printhead to hide missing jets
Specifications:

Compatible Heads : Xerox ® M-series
Thermal Control: with optional daughter board
Interface: PCIe 1 lane over standard HDMI cables, 180MB/s transfer
Software: Custom Xerox® Driver and API, Microsoft Windows OS only
Page Timing Inputs: Quadrature encoder, dot clock and page start, RS422 differential or single ended
Motor Control: Drives two small stepper motors
Solenoid Control: Up to 4 solenoids, PWM drive voltage
Analog I/O: 2 inputs, 3 outputs, 0v-10v
Digital I/O: 6 general purpose 3.3v I/O signals
Power Supply Requirements:
+ 5v @ 1.2A
+15v @ 1.2A
-15v @ 400mA
+50v @ 2.2A
-50v @2.2A

Printer Compatibility

Xerox ® M-series
