Description

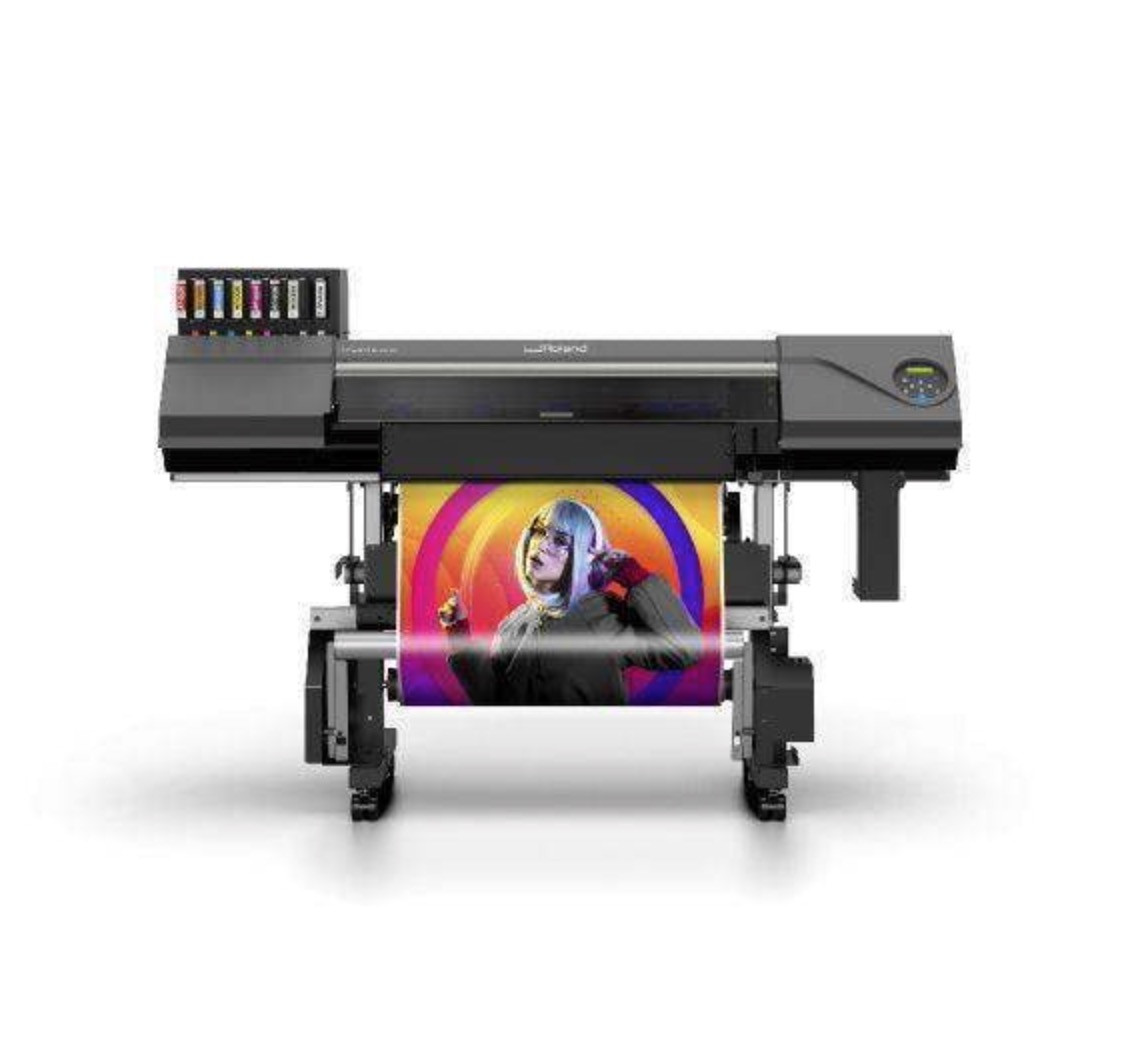

TrueVIS MG Series
| Model | MG-640 | MG-300 | |||||
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 8.3 to 64 in. (210 to 1625 mm) | 7.2 to 30 in. (182 to 762 mm) | ||||
| Thickness | Max. 39.3 mil (1.0 mm) with liner, for printing Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting |
||||||
| Roll outer diameter | Max. 8.2 in. (210 mm) | ||||||
| Roll weight | Max. 88 lb. (40 kg) | Max. 55 lb. (25 kg) | |||||
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||||
| Printing / cutting width 1 | Max. 62.9 in. (1600 mm) | Max. 28.9 in. (736 mm) | |||||
| Ink | Type | ECO-UV (EUV5) 220 ml cartridge (white) ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white) ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer) |
|||||
| Colors | Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) Seven colors (cyan, magenta, yellow, black, red, orange, white) Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) and primer Six colors(cyan, magenta, yellow, black, white, gloss) Four colors(cyan, magenta, yellow, black) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl) Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl) Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1440 dpi | ||||||
| Print Speeds | MG-640: 150 sqft/hr at 720 × 720 dpi MG-300: 120 sqft/hr at 720 × 720 dpi |
||||||
| Cutting speed | 0.39 to 11.8 in./s (10 to 300 mm/s) | ||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 59 mil (0 to 1.500 mm) | ||||||
| Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | 100-240 Va.c. 50/60Hz 2.7 A | |||||
| Power consumption | During operation | Approx. 250 W | Approx. 240 W | ||||
| Sleep mode | 40 W | ||||||
| Acoustic noise level | During operation | 63 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (with stand) | 111 [W] x 31 [D] x 52 [H] in. (2819 (W) x 781 (D) x 1316 (H) mm) | 77 [W] x 31 [D] x 52 [H] in. (1945 (W) x 781 (D) x 1316 (H) mm | |||||
| Weight (with stand) | 360 lb. (163 kg) | 276 lb. (125 kg) | |||||
| Environment | During operation 3 | Temperature: 59 to 89.6 °F (15 to 32 °C), fumidity: 20 to 80 %RH (no condensation) | |||||
| Not operating | Temperature : 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation) | ||||||
