Description
Specifications

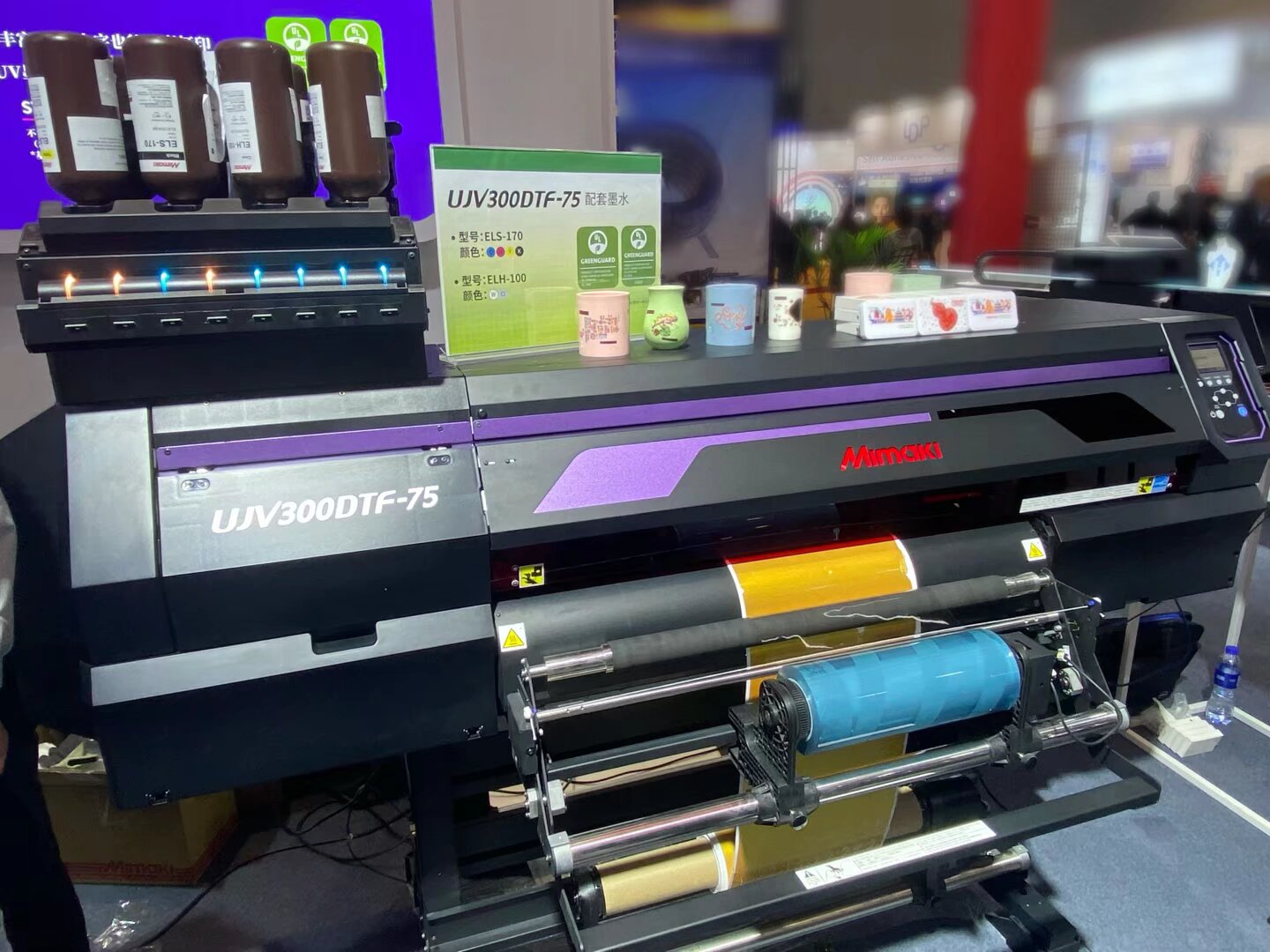

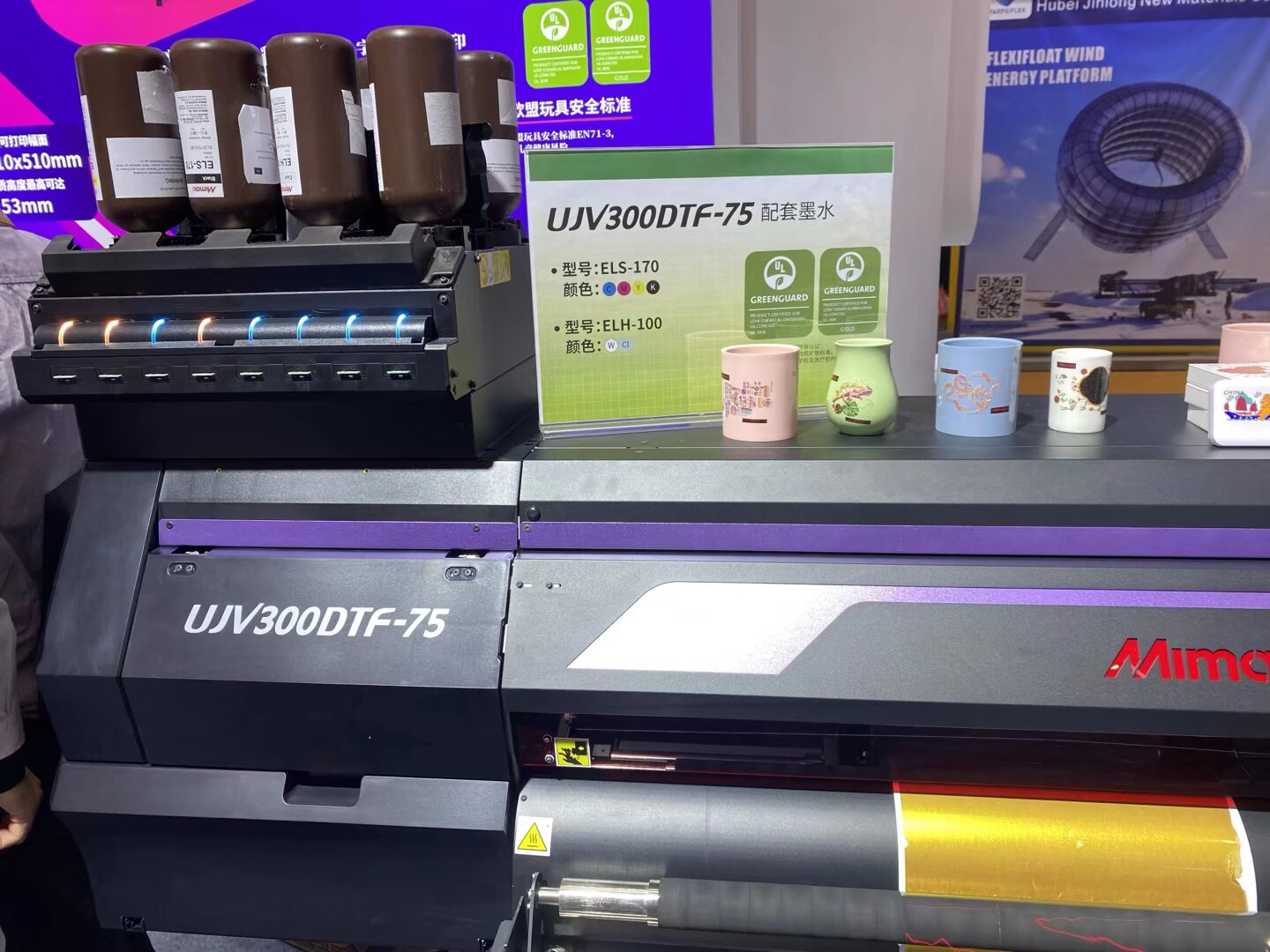

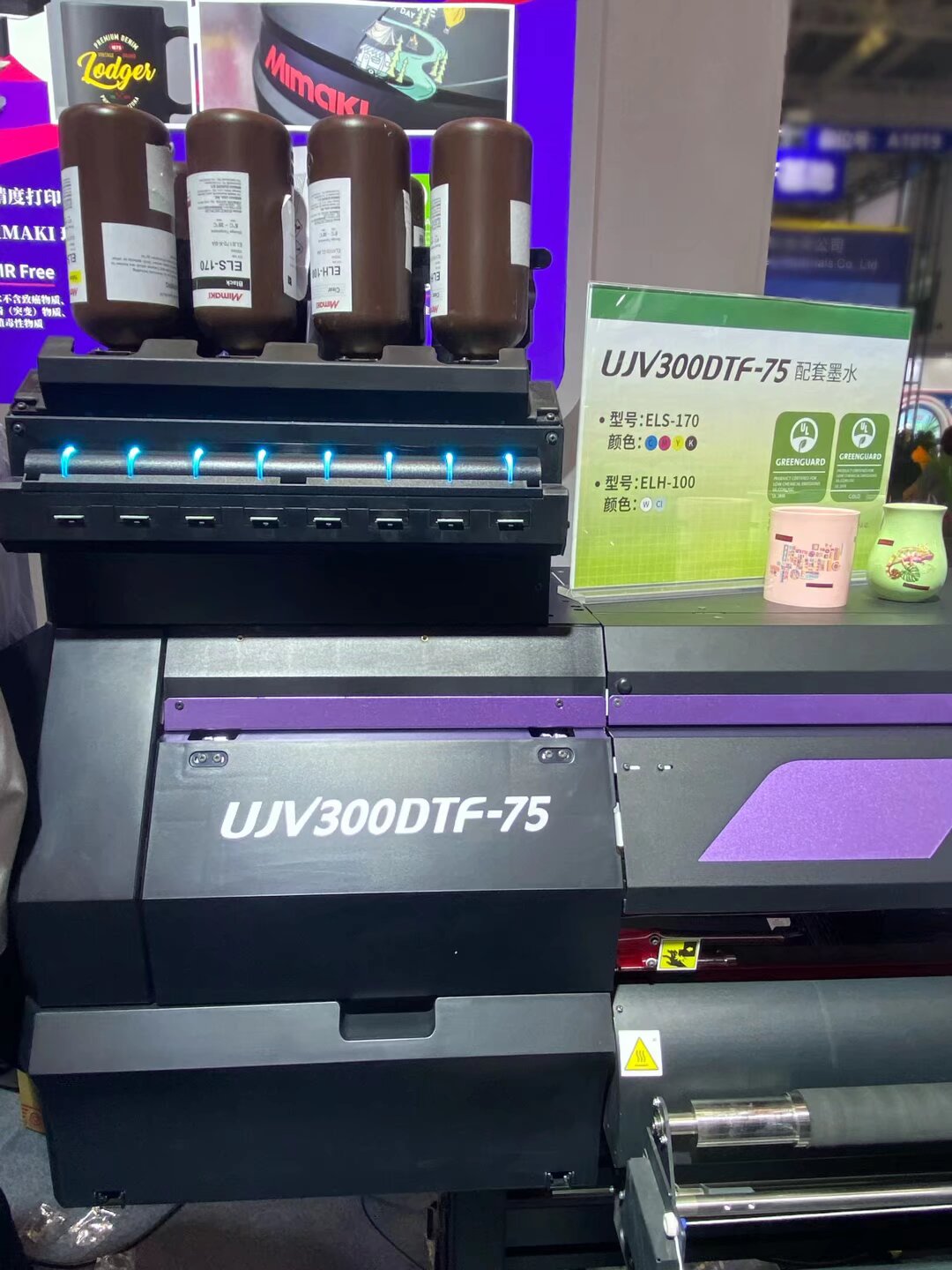

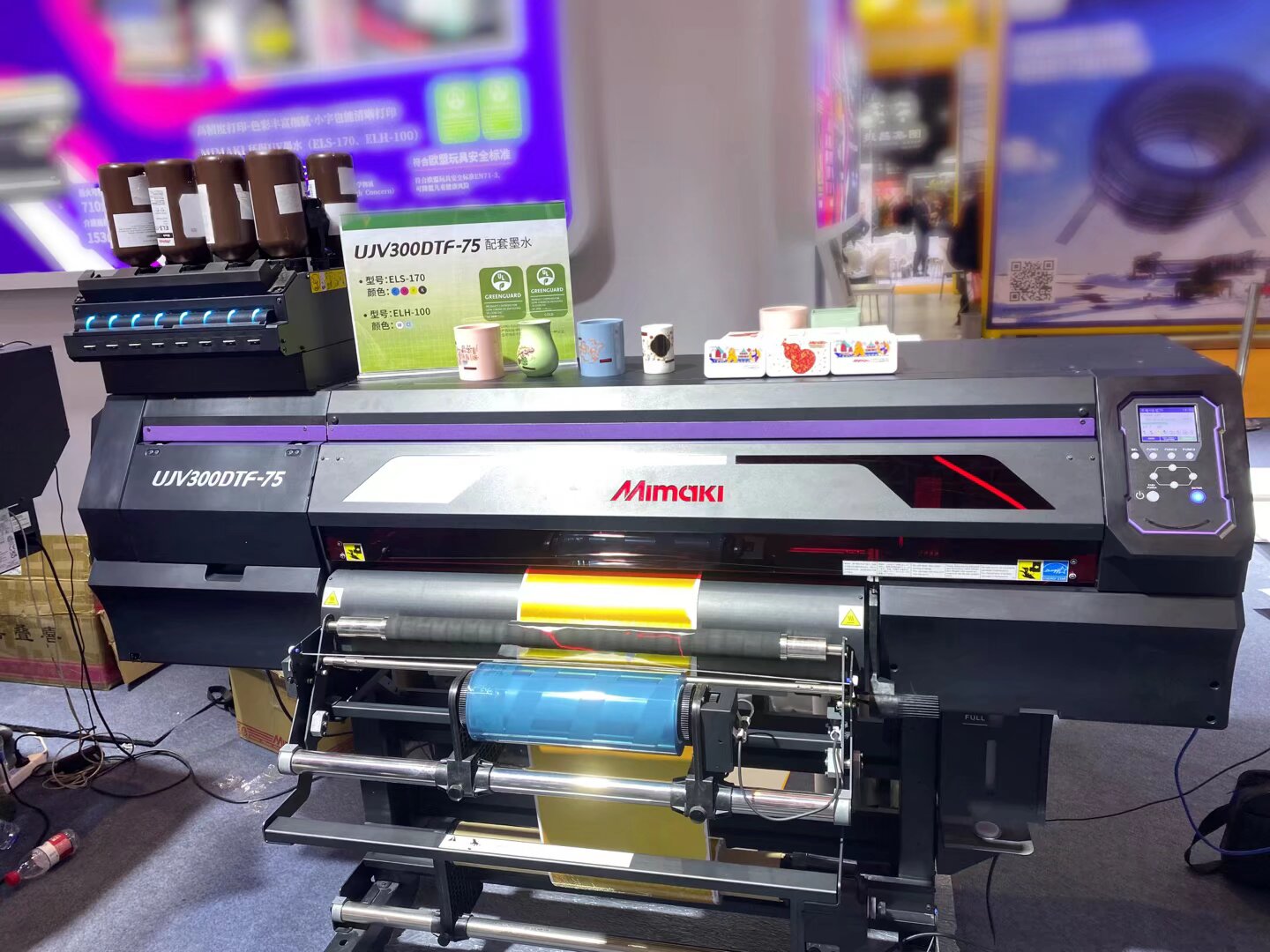

| UJV300DTF-75 | ||
|---|---|---|
| Print head | On-demand piezo head | |
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi | |
| Ink | Type/Color | UV curable flexible ink ELS-170 (C, M, Y, K) UV curable hard ink ELH-100 (White, Clear) |
| Capacity | 1L bottle | |
| Ink circulation system | Available only for white ink | |
| Max. print width | 640 mm (25.2 in) | |
| Media | Max. width | 650 mm (25.6 in) |
| Roll diameter | φ250 mm (9.8 in) or less | |
| Roll weight | 45 kg (99.2 lb) or less | |
| Interface | USB2.0 / Ethernet 1000 BASE-T | |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive and RoHS) / CB / REACH / Energy Star / RCM / KC |
|
| Power supply | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 | |
| Power consumption | AC100V: 1.44kW or less / AC200V: 1.92kW or less | |
| Operational environment | Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing) |
|
| Dimensions (W×D×H) | 2,090 x 930 x 1,475 mm (82.3 x 36.6 x 58.1 in) | |
| Weight | 180 kg (396.8 lb) | |
