Description
Product Overview

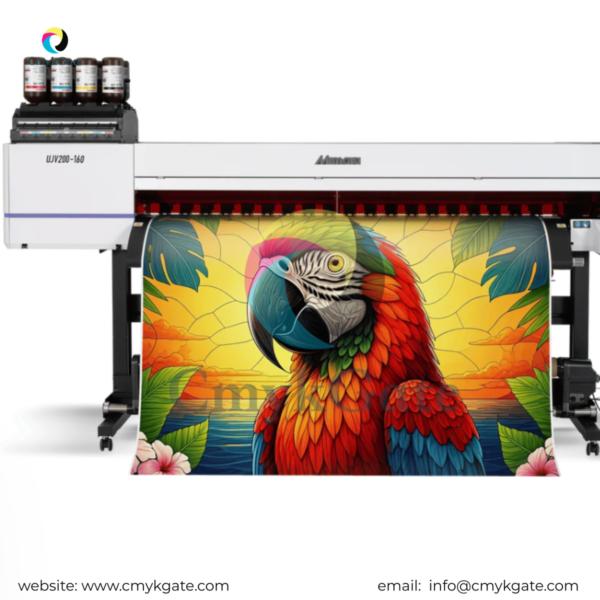

The Mimaki UJV200-160 is a professional roll-to-roll UV LED printer designed for sign makers, print service providers and commercial graphics businesses.
Powered by Mimaki’s latest 330 Engine single printhead technology, the UJV200-160 delivers excellent image quality while simplifying operation for both experienced and new users. LED UV curing enables instant drying, allowing prints to be finished immediately without additional drying time.
With a maximum print width of 1610 mm, support for white and clear inks, and advanced Mimaki image quality technologies, the UJV200-160 is suitable for producing high-value graphics on a wide variety of media.
Technical Specifications
| Item | Specification |
|---|---|
| Model | UJV200-160 |
| Brand | Mimaki |
| Condition | Brand New |
| Machine Type | Roll-to-Roll UV LED Printer |
| Print Head | Single On-demand Piezo Print Head |
| Maximum Print Width | 1610 mm |
| Media Width | 210–1620 mm |
| Maximum Resolution | 1200 dpi |
| Ink Type | UV Curable Ink (ELS-170 / ELS-175 / LUS-210) |
| Ink Colors | CMYK / White / Clear |
| Ink Capacity | 1 L Bottle |
| Interface | Gigabit Ethernet, USB 2.0 |
| Maximum Roll Weight | 25 kg (45 kg optional) |
| Maximum Roll Diameter | 180 mm |
| Power Supply | AC100–240V |
| Maximum Power Consumption | 1320 W |
| Dimensions | 2770 × 748 × 1405 mm |
| Weight | 160 kg |
Key Features
✔ LED UV instant curing technology
✔ Maximum print width of 1610 mm
✔ Up to 1200 dpi print resolution
✔ Single 330 Engine printhead
✔ Supports White and Clear UV inks
✔ High-quality graphics with Mimaki Variable Dot Technology
✔ Ethernet and USB connectivity
✔ Suitable for heat-sensitive media
✔ Low-energy LED curing
✔ Professional wide-format production
Applications
• Indoor Signage
• Outdoor Signage
• Window Graphics
• Vehicle Graphics
• Labels & Decals
• POP Displays
• Posters
• Banners
• Wallpaper
• Retail Graphics
• Exhibition Displays
• Backlit Graphics
Compatible Materials
• PVC Vinyl
• Self-Adhesive Vinyl
• PET Film
• Transparent Film
• Backlit Film
• Window Film
• Banner Material
• Wallpaper
• Canvas
• Synthetic Paper
Why Choose Mimaki UJV200-160
The Mimaki UJV200-160 is an entry-level professional UV LED printer that combines excellent image quality with simplified operation.
Its LED UV curing technology allows prints to dry instantly, improving productivity while reducing energy consumption. The printer also supports white and clear inks, enabling multilayer printing, special effects and premium graphics that cannot be achieved with conventional eco-solvent printers.
With Mimaki’s 330 Engine printhead technology, Variable Dot Technology, MAPS image processing and automated image quality adjustment, the UJV200-160 delivers reliable performance for commercial production.
FAQ
Is the Mimaki UJV200-160 a brand new printer?
Yes. We supply brand new Mimaki UJV200-160 UV LED printers.
What is the maximum print width?
The maximum print width is 1610 mm.
What inks does the printer support?
The printer supports Mimaki ELS-170, ELS-175 and LUS-210 UV-curable inks in CMYK, White and Clear configurations.
Does the printer support white ink?
Yes. White ink is available for printing on transparent and colored media.
Does it support clear ink?
Yes. Clear ink is available for gloss, texture and premium finishing effects.
Is UV ink instantly cured?
Yes. The LED UV curing system instantly cures the ink, allowing immediate finishing and handling.
Can you provide international shipping?
Yes. Worldwide shipping is available.
