Description
Product Overview

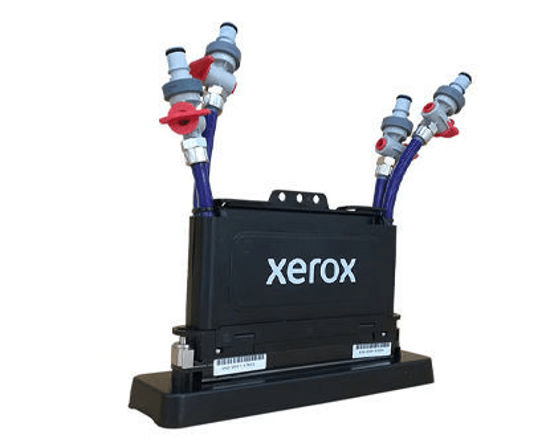

This Xerox® W-Series 80kHz Printhead family brings to market an industry-leading 5,544 jets in a compact printhead design combining high resolution, increased operating frequencies and a generous print width to maximize quality and efficiency for Aqueous applications.
Product specification:
Ink compatibility: water based inks
Number of addressable jets: 5544
Rows of nozzles: 24
Columns of nozzles: 231
Nozzle spacing: 21.2 (1200 npi)
Effective print width (single) : 115.00
Total print width (outside) : 119.60
Drop size: 3.2 pl
Jet Straightness, 1 Sigma: ≤5 mrad
Nominal drop velocity: 10 m/s
Operating frequency: max 80 kHz
Operating temperature: max 60°C (140 F°)
Fluid viscosity : 3 to 7 cP
Fluid surface tension : 25 to 50 dyne/cm
Maximum operating frequency: 43 kHz
Dry Weight : 386 grams (13.6 oz)
Wet Weight : 412 grams (14.5 oz)
Printer Compatibility
