Description
Product Overview

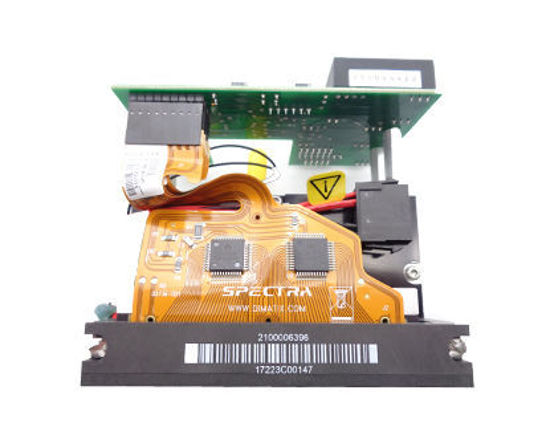

The Spectra Galaxy PH 256/30HM is an inkjet printhead designed for a broad range of industrial and commercial printing applications such as wide format graphics, addressing and packaging at resolutions up to 900 dpi. We recommend to change the head cables when installing a new printhead.
Product Specifications:
Number of addressable jets: 256
Nozzle spacing: 254 microns [0.010 in.]
Nozzle diameter: 36 microns
Calibrated drop size: 28 picoliters
Adjustment range for drop size: 25 – 30 picoliters
Drop size variation, 1 sigma*: 5%
Jet Straightness, 1 sigma*: 5 mrad [0.29°]
Nominal drop velocity: 8m/sec
Drop velocity variation, 1 sigma*: 5%
Crosstalk, maximum: 5%
Operating temperature range: up to 90°C [194°F]
Fluid viscosity range (at jetting temperature): 8 – 20 cP
Compatible jetting fluids: Organic solvents; UV curables, Aqueous
Maximum operating frequency : 20 kHz
This printhead carries a manufacturer warranty.
