Description
Product Overview

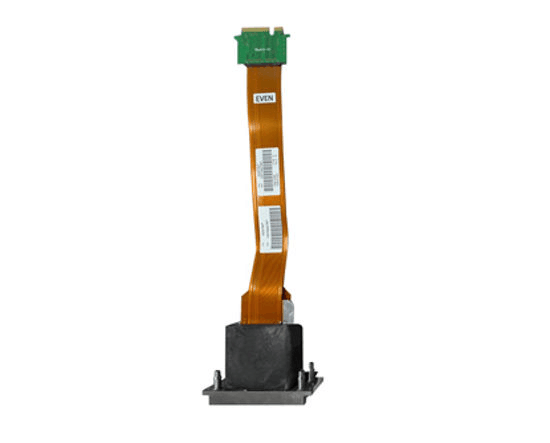

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This original printhead has an integrated heater and thermistor.This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.
Product Specifications
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
Printer Compatibility
Ampla Digital Targa XT 1804/XT 1808/XT 1816/XT 3204/XT 3208/XT 3216
Mimaki UJF-3042/UJF-3042FX/UJF-3042HG
Mimaki UJF-6042
