Description
Product Overview

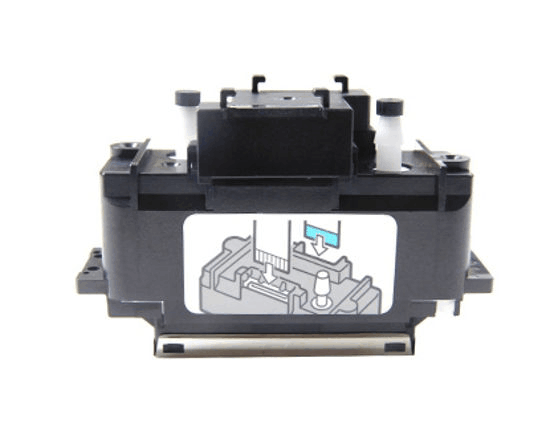

This Ricoh printhead is suitable for GH2220 based printers. This is the original Ricoh part (number GH2220).
Product Specifications
Size: 61.8(W) × 40.5(D) × 23.3(H) mm (2.43″ × 1.59″ × 0.92″)
Number of Nozzles: 384
Nozzle spacing (Within a row): 0,1693 mm/row
Nozzle spacing (Row to row distance): 0.931 mm
Method: Piston pusher with metallic diaphragm plate
Temperature Control: No heater or thermistor
Drop volume: Binary mode : 3-5pl / Grey-scale mode : 21±2pl
*depending on the ink
Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 24kHz
Life: 30 billion actuations per nozzle
Compatible ink: Aqueous, Solvent, UV
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer Compatibility
Colorjet Verve Mini
Gunsjet GSJ-GH-UVF1016V
Oric TS1519-GH-6H
Ricoh Ri 1000
WER R1808/R3208/R3T/RD3T/RF1808
Winjet W2-GH2220
Yuxunda SGH0606/SGH0609/SGH1013/SGH2513
