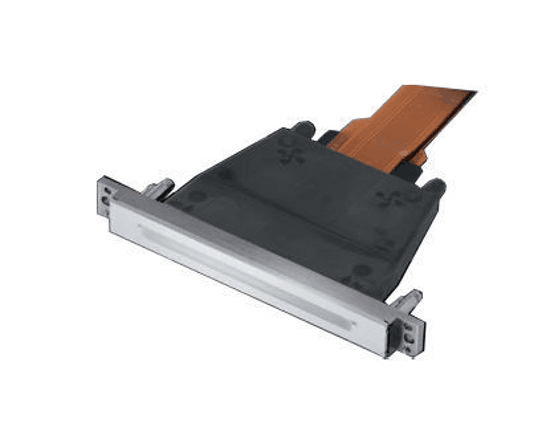

Ricoh MH2810F Printhead 519mm

This Ricoh MH2810F printhead with a total length of 519mm is suitable for a wide range printers. It supports up to 1 colour and has a total of 384 nozzles. This series of stainless steel print heads feature flow through functionality offering improved jetting performance for single pass applications as well as heavily loaded inks.This is Ricoh original printhead and it is covered by a manufacturer warranty.This Ricoh MH2810F is 519mm long in total (head body + cable + connectors). Head cable is 440mm long.

Product Specifications

Method: Piston pusher with metallic diaphragm plate
Print width: 64.861mm
Number of nozzles: 384 (2 × 192 channels), staggered
Nozzle spacing (1 color printing): 1/150″(0.1693 mm)
Nozzle spacing (Row to row distance): 0.9948mm
Compatible ink: UV, Solvent, Aqueous, Others. Able to handle heavy loaded pigmented inks
Total printhead dimensions: 120(W) × 13.2(D) × 76.3(H) mm (4.72″ × 0.52″ × 3″) excluding cables & connectors
Weight: 126 g
Ink color: Monochrome
Operating temperature range: Up to 80℃
Temperature control: Integrated heater and thermistor
Life: 100 billion actuations per nozzle
Jetting frequency (dependent on ink and system design): Binary mode : 30kHz / Grey-scale mode : 20kHz
Drop volume (dependent on ink and system design): Binary mode : 27pl / Grey-scale mode : 27 to 50pl
Viscosity range: 10-15 mPa•s
Surface tension: 28-35mN/m
Grey-scale (dependent on ink and system design): 4
Total length: 256mm including cables
Ink port: Hose Barb or O-Ring
Number of ink ports: 4 Ports (2×IN / 2×OUT)
Head to head alignment pin direction: Front or Back
