Description
Product Overview

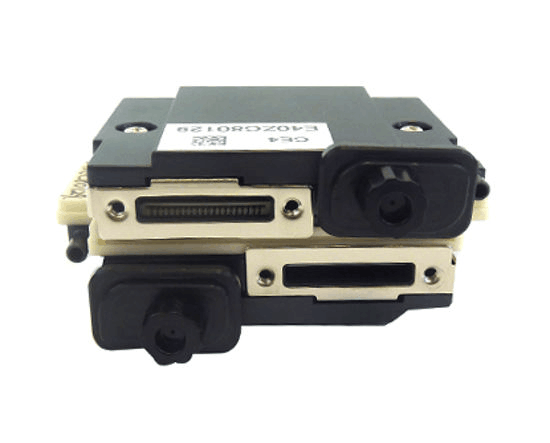

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head. We recommend to change the head cables when installing a new printhead.
Product Specifications
Technology: Multi-drop grayscale micro-piezo
Grayscale levels: 16
Active nozzles: 318
Print swathe width: 53.6 mm
Nozzle pitch: 169 μm
Native resolution: 150 dpi
Printhead weight: 148 g
Dimensions: 85 x 70 x 23 mm
Drop volume: 6 – 90 pl
Typical firing frequency: 2.8 – 28 kHz
Ink Compatibility: oil-based pigment ink and UV curable pigment ink
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer Compatibility
Mimaki JFX-1615/JFX-1615Plus
Mimaki JFX-1631/JFX-1631Plus
Mimaki UJF-3042MkII
Mimaki UJF-6042MkII
Mimaki UJF-706
Mimaki UJV-160
