Description
Product Overview

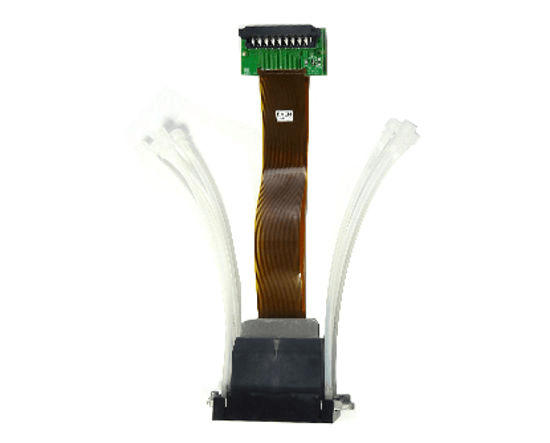

This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers. This is the original Mimaki part (number MP-M022653 replacing M014140).
Product Specifications
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 – 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Life: 100 billion actuations per nozzle
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer Compatibility
Mimaki TS500-1800
Mimaki TX500-1800B
Mimaki TX500-1800DS
MTEX Turbo Sub
