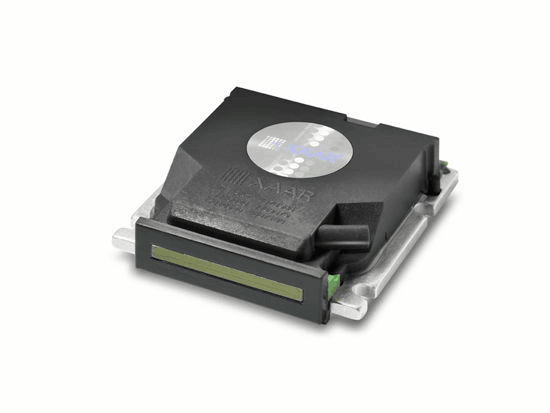

Light Grey Tag Xaar 128/40 W Printhead – XP12800009

This Light Grey tag Xaar 128/40 W printhead is suitable for a wide range of oil-based, solvent and dye sublimation inks.Compatible with a wide range of oil-based, solvent and dye sublimation inks, the Xaar 128 is extensively used across the coding & marking and wide-format graphics industries. It’s a consistent and highly flexible inkjet solution for producing eye-catching marketing media. This is original xaar 128 360dpi 40pl print head. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

Product Specifications

Tag: Light grey tag
Active nozzles: 128
Print swathe width: 17.4 mm
Nozzle pitch: 137.1 μm
Nozzle density: 185 npi
Drop velocity: 6 m/s
Printhead weight: 15.5 g
Dimensions: 37.2 x 40.8 x 11.3 mm
Drop volume: 40 pl
Typical firing frequency: 8.3 kHz
Xaar 128 Techical Datasheet here

Printer Compatibility

Algotex Rainbow 250/325

Allsign HX3204S/HX3208S/HX3212S/HX3216S

Aprint 330 Speedy
Aprint Vinylking 160

Azon UV 1600 FR

DGI XP-1804D/XP-3204T

Gerber Solara UV2

Graphtec SignJet JS501
Graphtec Signjet Pro JS300

Infiniti Fina160A/Fina180TX
Infiniti Fina250A/Fina320B
Infiniti Orasign W-Jet 160+/W-Jet 180+/W-Jet 320+

Rodin 1802/1804

Signjet 3312 Turbo XL

Sun Innovations New Drakar
Sun Innovations New Drakar Pro

Teckwin TeckStar 18/25

Yaselan Picasso YSL-D1600FBUV

Yat Fung Digital Xplorer YF-1232 III
Yat Fung Digital Xplorer YF-8180 III Plus
Yat Fung Digital Xplorer YF-8250 III Plus
Yat Fung Digital Xplorer YF-8320 III
