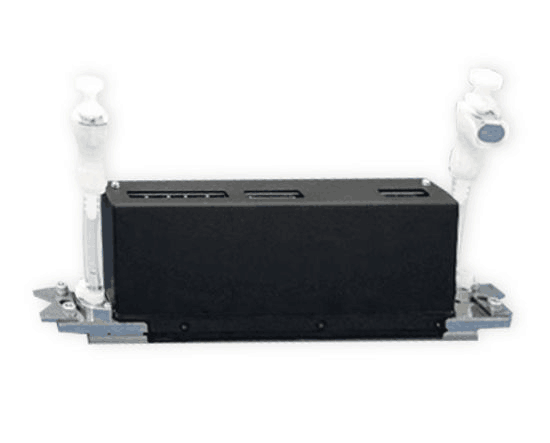

Kyocera KJ4B-QL STANDARD Water Printhead

This original Kyocera KJ4B-QL (STANDARD) printhead is compatible with a wide range of direct-to-textile printers including Reggiani printers. in 600 dpiwith a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.The Kyocera KJ4B-QL is equipped with internal filters to prevent particles to reach the nozzle plate and an internal heater that adjusts the temperature. The Kyocera KJ4B-QL is replacing the Kyocera KJ4B-QA.

Product Specifications

Ink Type: Aqueous Ink
Dimensions: 200 × 25 × 59.3mm
Dry Weight: 420g
Total Nozzles: 2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed: 75m/min
Optimum Ink viscosity: 5.0 – 6.0 mPa*s
This printhead carries a manufacturer warranty.
Country of origin : Japan

Printer Compatibility

Aeoon Kyo
Aeoon Kyo Ahp

Atexco Model H/X
Atexco Model X Plus
Atexco Vega One
Atexco Vega-9180DI
Atexco Vega-iX3/Vega-X5

Hanway Elite2504

Xerox Rialto 900
