Description
Product Overview

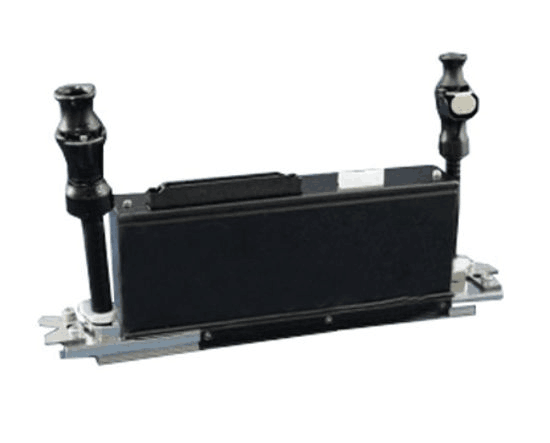

This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 70 m/min by making use of 2,656 nozzles arranged across 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.
Product Specifications:
Ink Type: UV Ink
Dimensions: 200 × 30 × 68.9mm
Dry Weight: 420g
Total Nozzles:2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600dpi
Print Width: 108.25mm
Max. Drive Frequency:30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed:70m/min
Input Voltage:3.3 V for logic / 29 V for driving
Temperature Control:Reservoir heater and thermistor are equipped
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer Compatibility
DPI M7
Gandi Digital Gladi8tor
Gemini 108C/214C
HAWK M6
Jetsci Kolorsmart +
