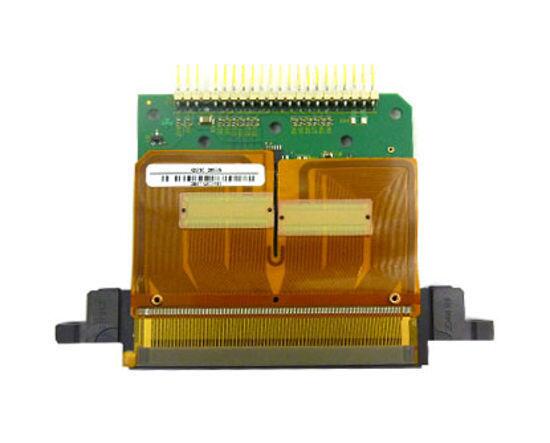

Dimatix Performa Sapphire QS-256/10 AAA Printhead with Hose

Dimatix Performa™ Sapphire QS-256/10 AAA printhead with hose supports for a broad range of ink formulations and applications.Each 256-channel Sapphire printhead with hose is offered with an integral temperature sensor and a configurable, dual-ported fluid interface comprised of O-ring face mounts or barbed fittings to facilitate fast flushing or recirculation of inks.
Printhead operational temperature can be up to 90° C. The driver chip is double buffered to support the Sapphire QS-256/10 AAA high-speed jetting capability

Product Specifications:

– Technology: VersaDrop™ jetting
– Print Width: 64.77mm (2.55″)
– Nominal Drop Size: 10 picoliter
– Adj. Range for Droplet Size: 10 to 30 picoliter
– Tot. Amount of Nozzles: 256
– Nozzle Spacing: 254 microns
– Firing Frequency: 50 kHz (16 kHz for 30 picoliter droplets)
– Operating Temperature: up to 90°C
– Ink Compatibility: UV curable, Organic solvents, and aqueous inks

This printhead carries a manufacturer warranty.

Country of origin : United States
