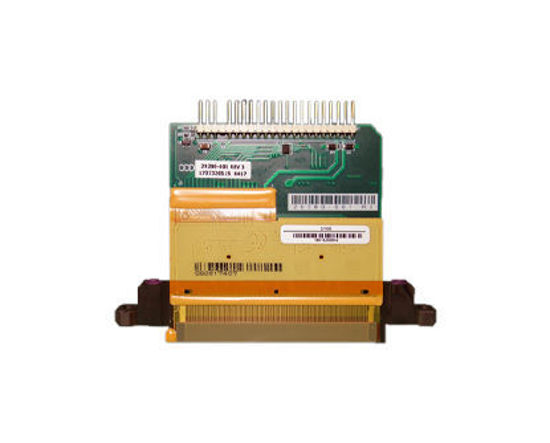

Dimatix Emerald QE-256/80 AAA Printhead

The Emerald QE-256/80 AAA printhead is high performance inkjet printheads designed for a broad range of industrial and commercial printing applications at resolutions of up to 100 dpi. It is compatible with a broad range of inks, including UV-curable, aggressive organic solvent and aqueous inks and associated maintenance fluids.

Product Specifications:

Number of addressable Jets per module : 256
Print width : 64.77 mm (2.55 inches)
Native resolution: 100 dpi
Native drop size: 80 pl
Largest drop size: 200 pl
VersaDrop Max Productivity: 1600 ng-kHz with drop sizes between 80 and 200 ng
Firing Frenquency : 20 kHz
80 picoliter nominal drop size
256 individually addressable nozzles
Incorporates VersaDrop™ grayscale jetting capability
Excellent channel-to-channel uniformity
High frequency continuous operation
Lightweight with thin profile
Supports UV-curable, solvent and aqueous-based inks
Integral temperature sensor
Dual-ported with minimal wetted surface area
OEM accessible non-volatile memory area for tracking purposes
Integral temperature sensor
Operation up to 90°C [194°F]
This printhead carries a manufacturer warranty.
Country of origin : Japan
