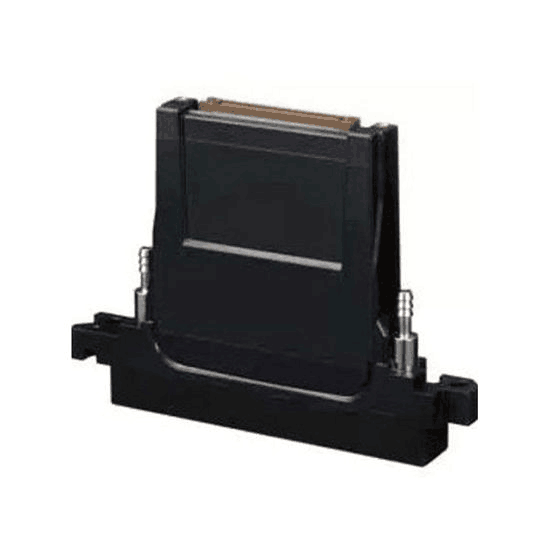

Konica Minolta KM HS2000 Printhead

The Konica Minolta KM HS2000 printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta HS2000 printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing. The Konica Minolta KM HS2000 printhead can be used as a replacement of KM1024i SHE 6PL Printheads.

Product Specifications:

• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

This printhead carries a manufacturer warranty.

Country of origin : Japan

Printer Compatibility

Agfa Anapurna 100
Agfa Anapurna H2500i LED
Agfa Anapurna M2050i/M2500i/M3200i

Allwin S320UV/S500UV
Allwin UVT 2030
Allwin UVT 2512
Allwin UVT+ 2030
Allwin UVT+ 2512

Docan H1000

Flora HJ 5000UV
Flora PP 2512UV
Flora XTRA 2000 HUV
Flora XTRA 330

Human Digital Technology M-JET

IIJ ColourPrint-72

JHF Vista R3300/R6000
JHF Vista V300UV/V500UV

Optimum Digital KR Hybrid UV

Skyjet FT2512i/FT3020i

Taimes T50UV

Yicong YD2512-KD
